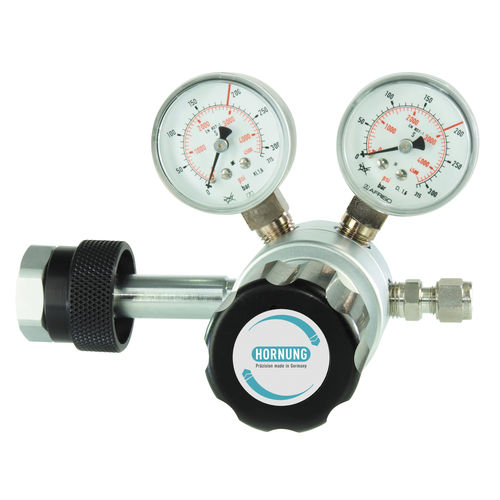

Gas pressure regulator HP 120diaphragmsingle-stageanalog
Add to favorites
Compare this product
Characteristics
- Product
- gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Output signal
- analog
- Material
- chrome-plated brass, stainless steel
- Applications
- industrial, high-pressure, for medical applications, for analytical instruments, high-purity, cylinder
- Other characteristics
- compact, with pressure gauge, high-purity
- Pressure
Min.: 5 bar
(72.52 psi)Max.: 200 bar
(2,900.75 psi)- Orifice diameter
0.25 in
- Temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
The cylinder pressure regulator HP 120 is a single stage pressure regulator, brass nickel and matt chrome plated or stainless steel 1.4404 electropolished.
The cylinder pressure regulator is developed as a diaphragm pressure regulator and specially made for high initial pressure.
The pressure regulator is fitted as a standard with gas specific connections to DIN 477 or any other common national standard.
Especially for gases with high requirements on purity up to 6.0 and for laboratories and analytics.
