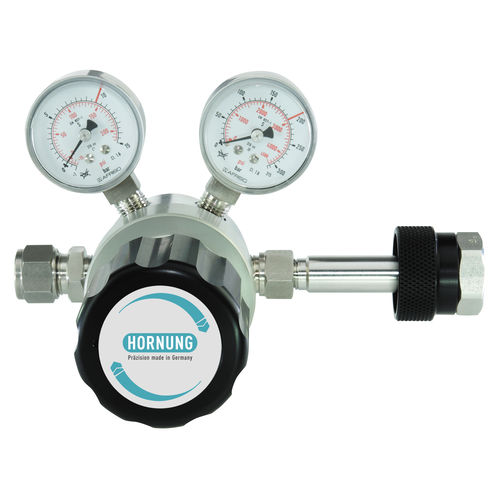

Gas pressure regulator HP 150

diaphragmplugsingle-stage

The cylinder pressure regulator HP 150 is a single stage pressure regulator with a high flow rate and is designed for pressure reduc- tion of high purity gases. The HP 150 reduces the pressure of comp- ressed gases or fluids to a maximum outlet pressure of 50 bar. It works according to the principle guiding the equilibrium of forces between the set spring force and the outlet pressure. The cylinder pressure regulator HP 150 is equipped with a balanced poppet and by so doing ensures constancy in operating pressure during the entire gas withdrawal process, and occurring decrease in inlet pressure. Especially for gases with high requirements on urity up to 6.0 and for laboratories and analytics. In case of our special cleaning method the cylinder pressure regulator is ECD capable.
