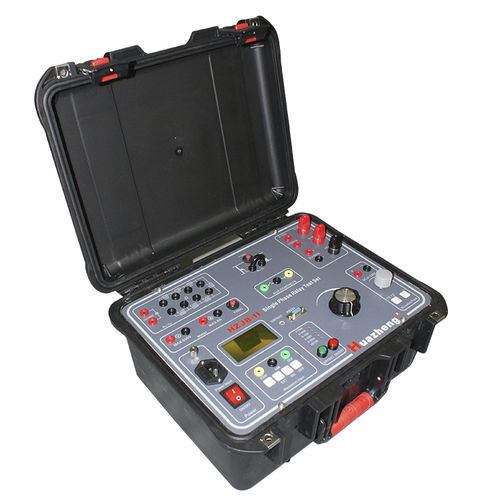

Single-phase relay test system HZJB-II

compactmodularautomatic

The HZJB-II Single Phase Relay Protection Tester is a portable field testing device with excellent performance. It features an elegant, polished appearance with an aluminum alloy chassis and PC panel. Controlled by an ARM chip, the tester has an LCD screen that displays voltage and current outputs, as well as a stopwatch. The instrument provides fully isolated outputs for adjustable AC/DC voltage, AC/DC current, and adjustable DC voltage. It also features double overload protection in the output loop, ensuring safety and reliability. With its high output capacity, small size, light weight, and high reliability, the HZJB-II is ideal for field calibration and testing of various relays. Main Features 1.Output a full isolation way for adjustable DC voltage, Automatic protection for short circuit, overload and out range. 2.Maximum Output Current:0~150A. 3.Equipped with LCD digital AC/DC volt-ampere meter, can show the AC and DC voltage and current values, stopwatch, potential, contact state. 4.Internal electric stopwatch; Available electrical contacts, maximum potential 250V; Dual channel measurement. II.Main Technical Parameter And Functions .Stopwatch: Range: 0.0000~999999S,Resolution: 0.1mS, Accuracy: ±5 With electrical contacts and potential input, the maximum input voltage: DC 250V Ammeter: Range: internal: 0.000~150.0A; External: 0.000~6.000A(AC or DC) Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average Voltmeter: Range: 0.0~600.0V(AC OR DC); Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average Resistors and Capacitors: Resistance: 0.5 ohm to 2.5k ohm Capacitor: 10uF, maximum voltage AC 450V
