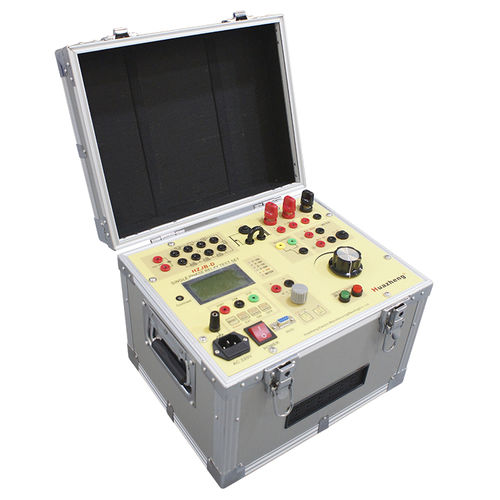

Single-phase relay test system HZJB-D

compactmodularautomatic

HZJB-D Single Phase Relay Protection Tester is a portable field testing equipment with excellent performance; Elegance and polished appearance with aluminum alloy chassis and PC panel, within the ARM chip control, LCD screen display voltage and current output stopwatch, it could output a full isolation way for adjustable AC/DC voltage, and AC/DC current and a way for adjustable DC voltage; the output loop with double overload protection with large output capacity ,small volume, light weight, high reliability ,It Suitable for field calibration and test for various relay. Main Features 1.Output a full isolation way for adjustable DC voltage, Automatic protection for short circuit, overload and out range. 2.Maximum Output Current:0~150A. 3.Equipped with LCD digital AC/DC volt-ampere meter, can show the AC and DC voltage and current values, stopwatch, potential, contact state. 4.Internal electric stopwatch; Available electrical contacts, maximum potential 250V; Dual channel measurement. 5.Light-weight design, small-volume, and fully-functional. Usage Method 9 Dimensions: L478mm × W360mm × H316mm 1.Voltage and current Power on, select output current terminal or voltage terminal, Press “Output selection”terminal, press “ON/ OFF”button,Device shows simulation failure state, you can adjust knob to control AC/DC voltage and current output. 2.Auxiliary Output DC voltage and current
