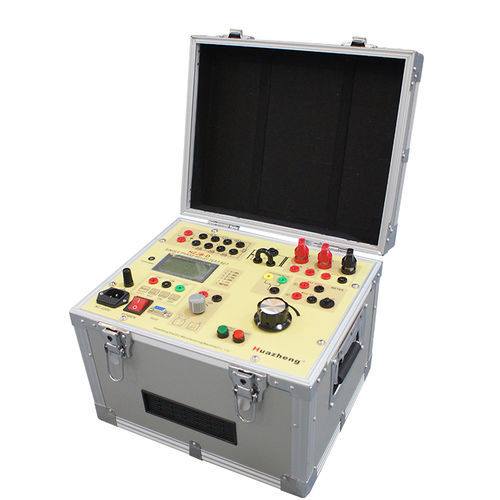

Voltage testing device HZJB-D

currentautomaticprotection relay

The HZJB-D Single Phase Relay Protection Tester is a portable field testing equipment with excellent performance. It features an elegant and polished appearance with an aluminum alloy chassis and PC panel. Controlled by an ARM chip, the LCD screen displays voltage and current output, as well as a stopwatch. The device can output fully isolated, adjustable AC/DC voltage and current, and an adjustable DC voltage. The output loop is equipped with double overload protection, large output capacity, small volume, light weight, and high reliability. It is suitable for field calibration and testing of various relays. Main Features: - Output a fully isolated, adjustable DC voltage with automatic protection for short circuit, overload, and out-of-range conditions. - Maximum Output Current: 0~150A. - Equipped with LCD digital AC/DC volt-ampere meter, displaying AC and DC voltage and current values, stopwatch, potential, and contact state. - Internal electric stopwatch; available electrical contacts, maximum potential 250V; dual channel measurement. - Light-weight design, small volume, and fully functional. Main Technical Parameter And Functions: - Rated input power: AC 220V ±10%, 1000VA, 50Hz - AC Output: - Range (A): 0~10, No-load Voltage (Min) V: 90, Full-load Voltage (Min) V: 80, Full-load Current (Max) A: 10 - Range (A): 0~40, No-load Voltage (Min) V: 25, Full-load Voltage (Min) V: 22, Full-load Current (Max) A: 40 - Range (A): 0~100, No-load Voltage (Min) V: 10, Full-load Voltage (Min) V: <8, Full-load Current (Max) A: 150 - AC Voltage Output: - Range (V): 0~250 (AC), No-load Voltage (Min) V: 250, Full-load Voltage (Min) V: 240, Full-load Current (Max) A: 3 - Range (V): 0~300 (DC), No-load Voltage (Min) V: 320, Full-load Voltage (Min) V: 250, Full-load Current (Max) A: 3 - DC Auxiliary Output: - Range V: 0~110, Voltage V: 120, Maximum current A: 0.5 - Range V: 110~220, Voltage V: 220, Maximum current A: 0.5 - Stopwatch: Range: 0.0000~999999S, Resolution: 0.1mS, Accuracy: ±5, Max input voltage: DC 250V - Ammeter: Internal: 0.000~150.0A; External: 0.000~6.000A (AC or DC); Accuracy: 0.5%; Measurement methods: AC: True RMS, DC: Average - Voltmeter: Range: 0.0~600.0V (AC or DC); Accuracy: 0.5%; Measurement methods: AC: True RMS, DC: Average - Resistors and Capacitors: Resistance: 0.5 ohm to 2.5k ohm; Capacitor: 10uF, max voltage AC 450V - Division/combination of auxiliary contacts: Max current: 1A, Max voltage: AC250V or DC120V - Operating Environment: Temperature: -10 ~ 40°C, Relative humidity: <80% - Volume: 320mm × 260mm × 230mm - Weight: 16kg Usage Method: - Voltage and current: Power on, select output current or voltage terminal, press “Output selection” terminal, press “ON/OFF” button. Device simulates failure state; adjust knob to control AC/DC voltage and current output. - Auxiliary Output DC voltage and current: Set potentiometer to zero, connect output line, select required voltage (0V or 110~220V), press output button, adjust potentiometer for voltage/current output. For external input, connect output to external input voltage/current terminal or to external voltmeter/ammeter. - Resistance/capacitor usage: Disconnect U-shaped short tab on Rx, select appropriate resistance/capacitance in series, connect as shown in figures. - Stopwatch: Input signal (contact converts On to Off or Off to On, with 5V-250V positive DC contact). For single/dual input, connect to switch contacts as shown in figures. Application examples: Measure action time and feedback time of relay coil. Caution: - Device should be reliably grounded during operation for safety. - Adjust the "contrast adjustment" if the display is dark or black. - The measuring selection button is invalid after current outputting. Packing List: 1. Main engine 2. Power line 3. Test lead package 4. Test lead (2.5mm²-2.5m) 5. Test lead (2.5mm²-0.5m) 6. Test lead (8mm²-2m) 7. Test lead (1.2mm²-2.5m) 8. Double core sheathed wire (2×1.2mm²-2.5m) 9. Transparent ground wire (2.5mm²-2m) 10. Insert (6mm) 11. Dedicated clip 12. Transition post 13. Pin plug 14. Fuse tube Technical Specifications: - Model: HZJB-D - Brand: Huazheng - Single phase relay protection tester - Portable, field calibration and test - Aluminum alloy chassis, PC panel - ARM chip control, LCD display - Adjustable AC/DC voltage and current output - Double overload protection - Large output capacity, small volume, light weight - High reliability
