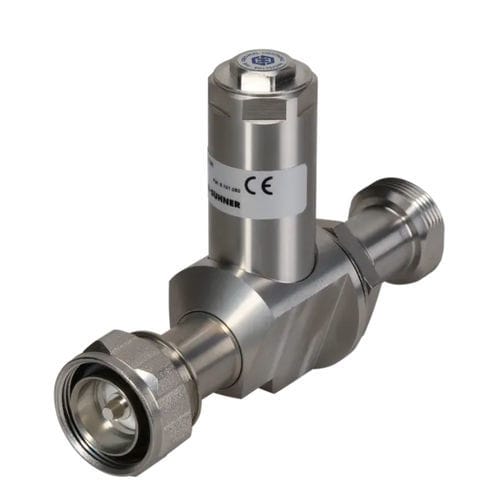

Type 1 surge arrester 3409.41.0090

outdoortelecommunicationsgas discharge tube

DC continuity for remote powering RF peak power not limited by gas discharge tube Excellent low PIM performance; Ideal for multicarrier systems Availability for application bands between 380 MHz and 18 GHz Gas discharge tube installed Specifications Product configuration Main path connectors - Port 1: unprotected, 7/16 plug (male) Port 2: protected, 7/16 jack (female) Mounting and grounding - MH110 (bulkhead mounting), M8 (screw), brk (bracket) Side of bulkhead - protected side EMP can be install reversed - YES Interface and material data Housing material / plating - Brass / SUCOPLATE (R) Plating Center contact, material / plating - Port 1: Brass / Silver Plating Port 2: Bronze / Silver Plating Electrical data Impedance - 50 Ω Frequency frame - 690 MHz to 2690 MHz Return loss typical - ≥ 28 dB Insertion loss typical - ≤ 0.1 dB CW power frame - ≤ 1500 W PIM 3rd order - -160 dBc AISG frequency - 10 MHz AISG return loss - 18 dB AISG insertion loss - 0.1 dB Residual pulse energy (typ.) - 250 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) Surge current handling capability - 30 kA single, 20 kA multiple (test pulse 8/20 µs) Electrical remarks DC supply voltage - 48 V DC current - 13 A Gas tube - Yes DC, GDT included, replaceable, 9071.99.0548 (90 V) Mechanical data Weight - 525 g Mating cycles - 500 Environmental data Operation temperature - -40 °C ... 85 °C Storage temperature - -40 °C ... 85 °C Ingress protection (IP Rating) - Mated / IP67, according to IEC 60529
