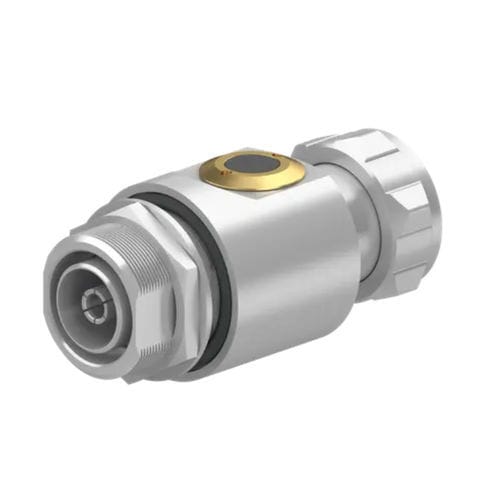

Quarter-wave surge protector 3407.41.0051

coaxial

Residual voltage reduced by 80 % compared to standard types of series 3400 Residual energy reduced of more than 99.9 % compared to series 3401 and 3402 DC-blocking on protected side of the device Available for applications from 70 MHz to 18 GHz Return loss 20 dB min. and Insertion loss 0.2 dB max. Broad-band design Space saving desing Multi-band operation Specifications Product configuration Main path connectors - Port 1: unprotected, 7/16 plug (male) Port 2: protected, 7/16 jack (female) Mounting and grounding - MH110 (bulkhead mounting), M6 (screw) Side of bulkhead - protected side Inline design - YES EMP can be install reversed - YES Interface and material data Housing material / plating - Brass / SUCOPLATE (R) Plating Center contact, material / plating - Port 1: Brass / Silver Plating Port 2: Bronze / Silver Plating Electrical data Impedance - 50 Ω Frequency frame - 690 MHz to 2700 MHz Return loss typical - 23 dB Insertion loss typical - 0.1 dB CW power frame - 500 W PIM 3rd order - -155 dBc typ. Residual pulse energy (typ.) - 0.03 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) Surge current handling capability - 25 kA single, 20 kA multiple (test pulse 8/20 µs) Electrical bands Frequency range - 690 MHz ... 2500 MHz Return loss typical - 26 dB Insertion loss - 0.1 dB Power avg. / peak - 500 W / - PIM 3rd order - -150 dBc typ. Electrical remarks Gas tube - No DC / shorted QW or LC Mechanical data Weight - 430 g Mating cycles - 500
