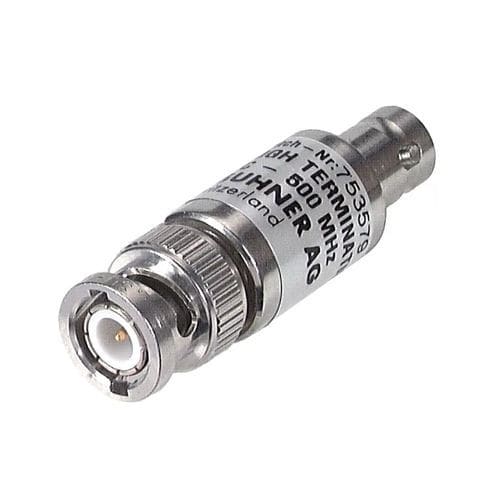

Coaxial attenuator 22550177

fixedRF

Wide range of interfaces Various bandwidth to improve the impedance matching between subsystems of its waveform Used in many test and measurement and communication applications. Specifications Material Data Interface - BNC / plug (male) Centre contact - Copper Beryllium Alloy / Gold Plating Outer contact - Brass / SUCOPLATE (R) Plating Body - Brass / SUCOPLATE (R) Plating Insulator - PFA / PTFE Coupling nut - Brass / SUCOPLATE (R) Plating Gasket - VMQ (Silicone rubber) Interface - BNC / jack (female) Centre contact - Copper Beryllium Alloy / Gold Plating Outer contact - Brass / SUCOPLATE (R) Plating Body - Brass / SUCOPLATE (R) Plating Insulator - PFA / PTFE Electrical data Impedance - 50Ω Operating frequency - 0 GHz ... 4 GHz Attenuation nominal - 3 dB VSWR - 1.2 Return loss - 20.8 dB Electrical Data (frequency related) Frequency range - Attenuation deviation - VSWR max 0 GHz to 2 GHz - 0.3 dB - 1.1 2 GHz to 4 GHz - 0.5 dB - 1.2 Electrical Data (power) Average power - 2 W at 30 °C ambient temperature. Linearly derated to 0 W at 130 °C ambient temperature. Peak power - 500 W, 5 µs pulse width, 0.05 % duty cycle Electrical remarks - Peak voltage max. 160V (50 Ohm) Environmental data Operation temperature - -55 °C ... 130 °C Material compliance ROHS Directive - RoHS 2011/65/EU and (EU) 2015/863 Rating - Compliant with exemption Exemptions - 6c Material compliance REACH Regulation - REACH 1907/2006 Article 33 SVHC
