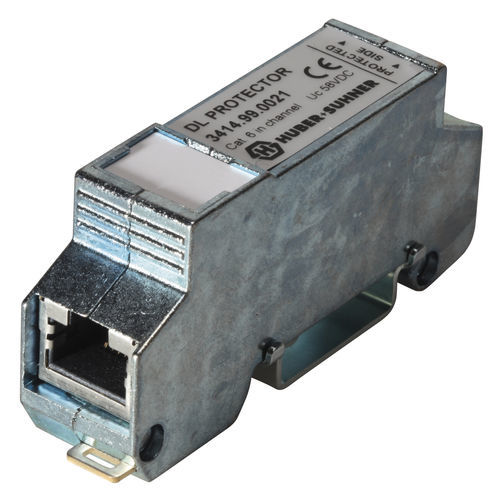

Type 3 surge protector 3414.99.0021

outdoorfor data and telecommunication linesPoE

Coarse and fine protection All lines protected Maintenance free Conform to Category 6 in channel E (ISO/IEC 11801; EN 50173-1) Supports Power over Ethernet (PoE) IEEE 802.3at Shield and ground separated Specifications Product configuration Main path connectors - Port 1: unprotected, RJ45 jack 8-Pin jack (female) Port 2: protected, RJ45 jack 8-Pin jack (female) Mounting and grounding - 35 mm DIN rail acc. EN 60725 Interface and material data Housing material / plating - Zinc Alloy Electrical data Impedance - 100 Ω Frequency frame - 0 MHz to 250 MHz Nominal voltage UN - 58 V Operating voltage UC - max. 58 V DC, pair to pair Operating voltage UC - max. 41 V AC, pair to pair Nominal current IL - 1 A, per pair Nominal discharge current In - 150 A, (test pulse 8/20 µs), line to line Nominal discharge current In - 2.5 kA, (test pulse 8/20 µs), line to ground Total nominal discharge current In - 10 kA, (test pulse 8/20 µs), all lines to Ground Capacitance - typ. 30 pF, line to line Capacitance - typ. 25 pF, line to ground Voltage protection level UP - typ. 180 V, (test pulse 1kV/µs, C3), line to line Voltage protection level UP - typ. 500 V, (test pulse 1kV/µs, C3), line to ground Electrical remarks - All eight lines protected Pinning: 1/2, 3/6, 4/5, 7/8 Mechanical data Weight - 113 g Environmental data Operation temperature - -40 °C ... 80 °C Storage temperature - -40 °C ... 80 °C Ingress protection (IP Rating) - IP20 Material compliance ROHS Directive - RoHS 2011/65/EU and (EU) 2015/863
