Flexible coupling Sure-Flex Plus®
flangetorqueATEX

flexible coupling
flexible coupling
Add to favorites
Compare this product


Characteristics

Type
flexible
Product applications
flange
Other characteristics
torque, ATEX
Installation system
sleeve
Torque

8,200 Nm
(6,048.0096 ft.lb)

Description

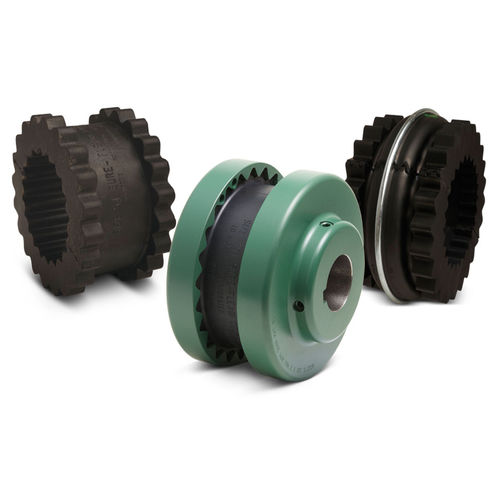

For over 50 years, TB Wood’s has led the coupling industry with the original TB Wood’s Sure-Flex design. And we haven’t stopped innovating: this industry favorite just got even better. Our new Sure-Flex Plus® EPDM and Neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment, and end float. With Sure-Flex couplings, the need for lubrication and maintenance is eliminated. As a result, these couplings provide clean, dependable, and quiet performance for a variety of applications. Product Features High Torque Rating - 30% Increased Torque Rating, EPDM and Neoprene Longer Life - Sure-Flex Plus Lasts Over 3X Longer than the Competition Better Value - Save Money Using a Smaller Coupling Interchangeable - Retrofits to Existing Flanges 7 to 21 degree torsional wind-up Bored-to-size, spacer, bushed flange, and clamp flange designs in stock Flexible design accommodates misalignment and protects equipment No lubrication required One-piece, split and two-piece sleeve constructions allow for easy installation under any conditions ATEX Compliant
