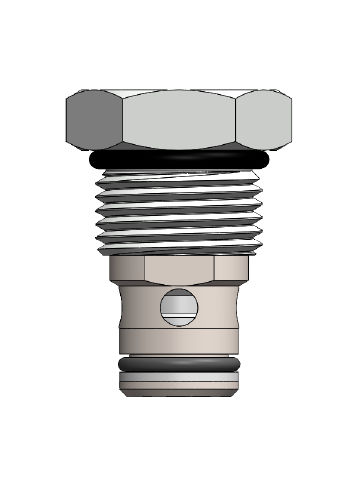

Cartridge check valve CV10-P0

poppetstandardcompact

CV10-P0 allows flow from ① to ②, and blocks flow in the opposite direction. The cartridge has a fully guided poppet which is spring-biased closed until sufficient is applied at pressure is applied at ①， allowing fluid flow from ① to ②. Features Fast and smooth response to pressure changes. Positive stops prevent springs from going solid. Compact size. Adjustments cannot be backed out of the valve. Industry common cavity. Hardened poppet and cage for long life. Flow: See performance chart Internal leakage: 0.1 mL/min (2 drops/min) max. at 250 bar (3500 psi) Crack(set) pressure defined: Bar evident at ① at 16.4mL/min (1 cu. in. /min) attained. Standard bias spring at crack: 0.3 bar (4 psi) / 1 bar (15 psi) / 2 bar (29 psi) / 4 bar (58 psi) / 5 bar (73 psi) / 10 bar (145 psi) / 20 bar(290 psi) Fluid: Mineral based or synthetics with lubricating properties at viscosities of 7.4~420 cSt (50-2000 ssu) Installation: No restriction Cavity: V10-2 Cavity tool: T/H10-2RC-T-G (Rough), T/H10-2FM-T-G (Finishing) Seat kit: SK10-2N -B
