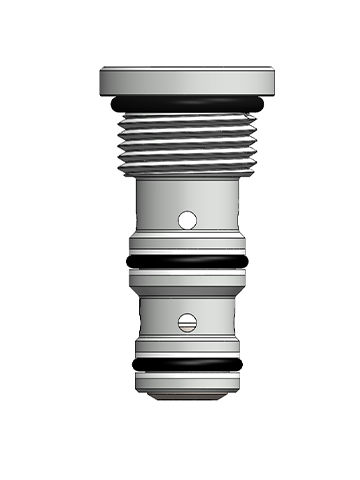

Shuttle check valve LS08-P0Gscrew-instandard
Add to favorites
Compare this product
Characteristics
- Type
- shuttle
- Connexion
- G
- Body
- screw-in
- Other characteristics
- standard
- DN
0.75 in
- Pressure
350 bar
(5,076.3 psi)- Temperature
Max.: 240 °C
(464 °F)Min.: -54 °C
(-65 °F)- Flow rate
10 l/min
(2.64 us gal/min)
Description
A screw-in, cartridge-style shuttle valve, for use in blocking circuits where a priority of flow/direction is given to a higher pressure circuit.
LS04-P0 allows flow from the higher pressure port( ① or ③ )to port ② .
Flow: See performance chart
Internal leakage: 0.25 mL/min (5 drops/min) max. at 350 bar (5000 psi)
Filtration: Max. nominal value: 10μm（NAS 8），ISO4406 19/17/14
Fluid: Mineral based or synthetics with lubricating properties at viscosities of 7.4~420 cSt (50-2000 ssu)
Installation: No restriction
Cavity: VC08-3
Cavity tool: T/H08-3-RC-T-G (Rough), T/H08-3-FM-T-G (Finishing)
Catalogs
LS08
2 Pages
