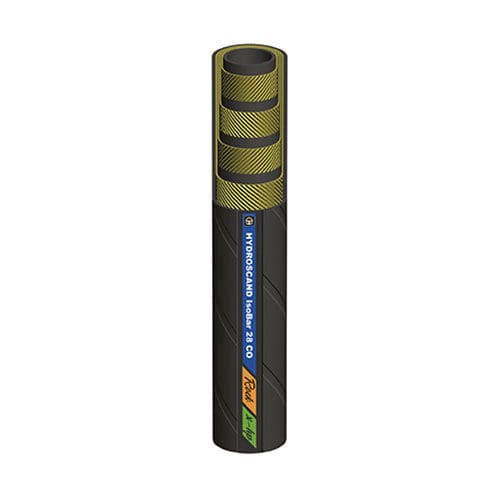

Hydraulic hose Isobar 280 CO Rock X-HPfor high pressurewire-reinforcedweather-resistant
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Applications
- for high pressure
- Other characteristics
- abrasion-resistant, weather-resistant, oil-resistant, wire-reinforced, multilayer
- Inner diameter
19 mm, 25 mm
(0.748 in, 0.984 in)- Outer diameter
30.9 mm
(1.217 in)- Pressure
27.5 MPa
- Temperature
Min.: -40 °C
(-40 °F)Max.: 121 °C
(249.8 °F)
Description
Hose with 4 layers of steel, very flexible and very resistant to external abrasion. It is easy to install as it has an extremely flexible and durable outer cover. It can withstand high pressures up to 275 bar. Approved under MSHA certification, it exceeds the requirements of SAE 100 R12.
product information - 4-ply steel hose - SAE 100 R12
Black color
Bundled Tubes / Hoses - 1
Protection Tube Resistance - Abrasion, Oil, Climate
Inner tube resistance - oil
Safety factor - 1:4
Max temperature (°C) - 121
Reinforcement layers - 4
Reinforcement Materials - Steel Wire
