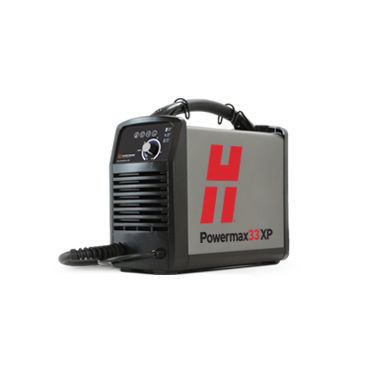

Automatic plasma cutter Powermax33® XP

IGBT inverterinverterhigh-performance

Overview
The Powermax33® XP is a lightweight, portable system that delivers category-leading power, cut capacity, and quality. A unique “two-in-one” design provides high-power capability for thick-metal cutting up to 20 mm (3/4") and FineCut® consumables for detailed, thin-metal cutting. In addition to cutting electrically conductive metals such as mild steel, stainless steel, and aluminum, this 33-amp plasma cutter can also gouge metal with HyAccess™ gouging consumables. The system supports both 240 V and standard 120 V household sockets for maximum versatility and portability. More Power. More Value.

Availability
This product is not currently available for sale in Mexico, Ukraine, China, Saudi Arabia, Australia, New Zealand, or South Africa.

Applications

• Drag cutting — for dragging the torch directly across the work piece
• Fine feature cutting — narrow kerf width with minimal dross and heat affected zone

Unsupported applications

• Extended reach cutting
• Extended reach gouging
• Flush cutting
• Max control gouging
• Max removal gouging
• Mechanized cutting

Benefits

• Easy to use: The system includes everything you need to get cutting quickly and easily. Small size and light weight let you take the Powermax33 XP just about anywhere. Plug into any 120 V or 240 V power (convenient Auto-Voltage™ technology and plug adapters included).
• Superior performance in a compact package: Fast cutting speeds and excellent cut quality let you finish jobs quicker with fewer secondary operations. Built to withstand heavy-duty use in demanding environments.
• “Two-in-one” design for maximum versatility: High-power cutting on thick metal, and FineCut consumables enable high-quality cuts on thin metal with a clean edge and narrow kerf.

Specifications (summary)
Input voltages: 120-240 V, 1-PH, 50/60 Hz
Input current @ 4.1 kW: 120-240 V, 1-PH, 24-20.5 A
Output current: 15-33 A
Rated output voltage: 125 VDC
Duty cycle @ 40°C (104°F): 35% (240 V); 20% (120 V)
Open circuit voltage (OCV): 256 VDC
Dimensions with handles: 356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H
Weight w/ 4,5 m (15') torch: CSA: 9.7 kg (21.4 lbs.); CE: 9.5 kg (21 lbs.)
Gas supply: Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate / pressure: 113.3 l/min (4 scfm) at 80 psi (5.5 bar)
Input power cable length: 3 m (10')
Power supply type: Inverter - IGBT
Engine drive requirement: 5.5 kW for full 33 A output
Certifications: CSA — certified for use in the Americas and Asia (except China); CE — for use in Europe and other countries where accepted.
Warranty: Power supply: 6-year; Torch: 1-year

Operating data — Cut capacities
Recommended: 13 mm (1/2") at 400 mm/min (16 ipm); 16 mm (5/8") at 250 mm/min (10 ipm)
Severance: 20 mm (3/4") at 125 mm/min (5 ipm)

Cutting with 120 V input power (using FineCut consumables)
At the maximum recommended output of 25 A, cut capacities:

• 6 mm (1/4") at 482 mm/min (19 ipm)
• 10 mm (3/8") at 203 mm/min (8 ipm)
• 13 mm (1/2") at 76 mm/min (3 ipm)

Caractéristiques / spécifications techniques

• Input voltages: 120-240 V, 1-PH, 50/60 Hz
• Input current @ 4.1 kW: 24–20.5 A (120–240 V)
• Output current: 15–33 A
• Rated output voltage: 125 VDC
• Duty cycle @ 40°C: 35% (240 V); 20% (120 V)
• Open circuit voltage: 256 VDC
• Dimensions (with handles): 356 mm D × 168 mm W × 305 mm H
• Weight (with 4.5 m torch): CSA 9.7 kg; CE 9.5 kg
• Gas: Clean, dry, oil-free air or nitrogen (113.3 l/min at 80 psi / 5.5 bar)
• Input power cable length: 3 m (10')
• Power supply type: Inverter - IGBT
• Engine drive requirement: 5.5 kW for full 33 A output
• Certifications: CSA and CE (as noted above)
• Warranty: Power supply 6-year; Torch 1-year
