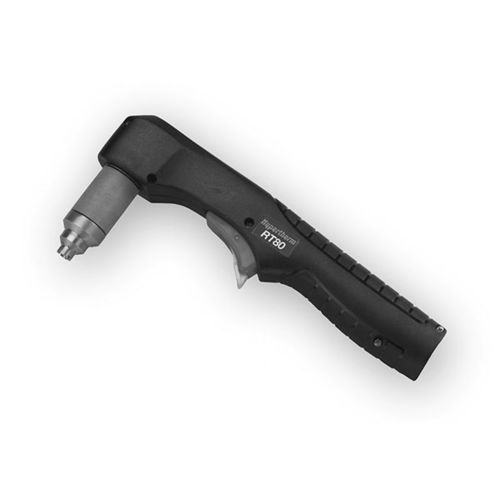

Plasma cutting torch RT80

air-cooledmanual

A performance boost for your Powermax1100 plasma system Whether your Powermax1100 is part of a manual or a mechanized system, retrofitting it with the RT80 torch will give you improved cutting performance, dramatically longer consumable life, and enhanced productivity. A plug-and-play replacement for the system’s original PAC135, this capable 80-amp torch is based on the proven design of the Hypertherm T80 torch for the Powermax1250 G3 Series. It incorporates a number of significant performance enhancements, including: • Coaxial-assist™ jet technology for improved contact-starting and up to 10 times longer parts life • 173% longer consumable life through unique torch dynamics and HyLife® electrode technology • Cut speeds up to 48% faster – 19 ipm on 1” steel (480 mm/m on 25 mm steel) • Consistent cut quality assured by patented blow-back contact-start torch technology • New narrow-profile nozzle shield that allows drag-cutting convenience • Chemically cross-linked cable jacket that’s twice as cut resistant and four times more burn resistant than competitive cables
