Plasma cutting torch Duramax®

air-cooledmanualfor machines

Overview

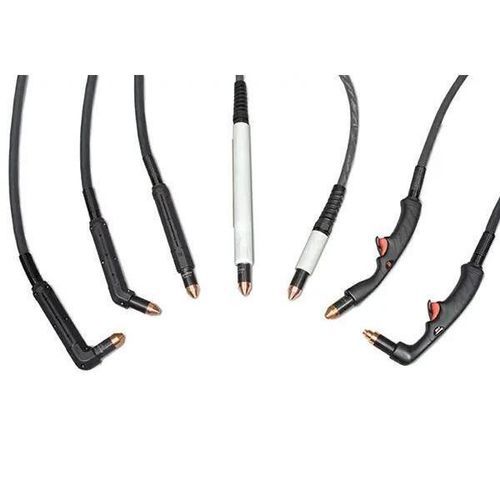

Designed for durability and reliability with SpringStart™ technology, Duramax® torches are available for handheld, mechanized (full-length and mini machine) cutting and gouging, and robotic cutting. Duramax torches offer an extensive array of specialty consumable options for applications including gouging, fine-feature cutting, extended-reach cutting, and flush cutting.

Applications

• Drag cutting — For dragging the torch directly across the work piece
• Extended reach cutting — For extended reach cutting applications
• Extended reach gouging — For improved visibility and accessibility in confined spaces
• Fine feature cutting — For cutting fine features
• Flush cutting — For cutting flush to base materials
• Marking — For scoring and indicating part identification, hole or weld locations
• Max control gouging — For precise metal removal, shallower gouge profiles and light metal washing
• Max removal gouging — For aggressive metal removal and deep gouge profiles
• Mechanized cutting — For portable automation and table cutting
• Precision gouging — For spot and tack weld removal at very low output current (<25 A)

Benefits

• For hand cutting and gouging jobs — Duramax® 75° and 15° hand torches: the ergonomic 75° torch is suited for normal cutting; the 15° torch directs heat away from the operator during heavy gouging and enables cutting overhead or in hard-to-reach areas.
• For machine jobs — Duramax full-length machine torches work with a wide variety of CNC cutting tables, track cutters and pipe-cutters. Mini machine torches are suited to lighter tables and pipe cutting where a full-length torch is too long.
• For robotic jobs — Lightweight, small size and built-in positioning features enable easy integration and operation with light robot arms; an optional robotic clamp speeds integration.

Key accessory & upgrade information
Optional mechanical teach tool aids programming (touch the plate while programming cutting and pierce heights). Robotic clamp assembly kit (#228806) and robotic teach tool kit (#229456) are available as accessories.

Hypertherm cartridge consumable platform
The Hypertherm cartridge consumable platform is a single-piece cartridge system optimized by process and amperage to simplify parts and ensure process-specific performance.

Cartridge adapter (convert existing Duramax torches to cartridge platform)
Compatibility table (System | Torch type | Adapter part number):
Powermax45® XP | Duramax® Lock hand, machine, and robotic | 428951
Powermax65® | Duramax hand, machine and robotic | 428951 (adapter used for listed systems)
Powermax85® | Duramax hand, machine and robotic | 428951
Powermax105® | Duramax hand, machine and robotic | 428951

Cartridges — Drag cutting and FineCut for hand torches
Process | Cartridge
105 A | 428937
85 A | 428935
65 A | 428931
45 A | 428927
FineCut hand cutting | 428928

Cartridges — Mechanized and FineCut for machine torches
Process | Cartridge / Kit
105 A | 428936
85 A | 428934
65 A | 428930
45 A | 428925
FineCut mechanized cutting | 428926
Ohmic ring kit (contains 3 #420580 ohmic rings) | 428895

Cartridges — Max removal and Max control gouging
Process | Cartridge
Max removal gouging 105 A | 428938
Max removal gouging 45–85 A | 428932
Max control gouging 105 A | 428939
Max control gouging 45–85 A | 428933

Standard consumables and torch options
Available torch angle: 180° (plus specific hand angles such as 75° and 15° where noted).
Available lead lengths: 10.7 m (35'), 15.2 m (50'), 4.5 m (15'), 7.6 m (25').

Documents (selected titles shown on product page)
Cartridge adapter brochure — Last updated 17/10/2022 (PDF)
Duramax™, Duramax Hyamp, and Duramax Retrofit Torches — Last updated 07/09/2016 (PDF)
Duramax and Duramax RT gouging information — Last updated 05/10/2022 (PDF)

Characteristics / spécifications techniques

• Product family: Duramax® torches
• Brand: Hypertherm
• SpringStart™ technology for improved arc starting reliability
• Available configurations: Hand (75° and 15°), Machine (full-length and mini machine), Robotic
• Applications supported: drag cutting, extended reach cutting, extended reach gouging, fine-feature cutting, flush cutting, marking, max control gouging, max removal gouging, mechanized cutting, precision gouging
• Cartridge platform: process- and amperage-optimized single-piece cartridges (multiple cartridge part numbers per process and amperage as listed)
• Adapter part number for cartridge conversion (examples): 428951 (used for Powermax45 XP, Powermax65, Powermax85, Powermax105 compatibility)
• Accessories: robotic clamp kit (#228806), robotic teach tool kit (#229456), ohmic ring kit (#428895)
• Angles and lead length options: 180° angle option; lead lengths 4.5 m / 7.6 m / 10.7 m / 15.2 m
