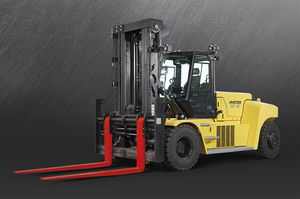

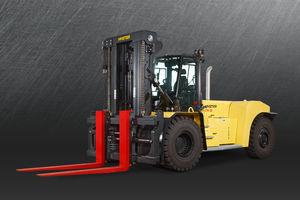

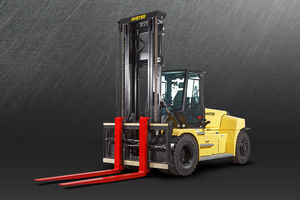

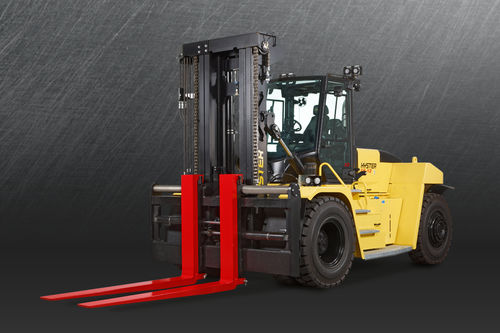

Diesel engine forklift H18-20XD

ride-onharborfor the construction industry

Overview
Rely on the power and durability of Hyster® H18-20XD heavy‑duty forklift trucks for the toughest industrial applications. Compact short‑wheelbase models deliver high travel and lift speeds, a high‑performance powertrain with engine and transmission protection, and a low total cost of ownership across steel, coil, concrete and port operations.

Key features

• Ultra‑compact short wheelbase (S models ≈ 3.50 m)
• Robust mast and carriage construction with greaseable load rollers
• High‑performance MTU 7.7L diesel powertrain with ZF transmission
• High‑visibility ergonomic cab with full‑colour display
• Service‑friendly access and galvanized anti‑slip running boards

Compact wheelbase
Short‑wheelbase S models are engineered for operations in confined spaces while maintaining fast travel and lift speeds. The compact footprint reduces required operating space without compromising rated capacity or drivetrain protection systems that enhance uptime.

Robust design
The mast and front‑end components use reinforced channels, rollers, stub shafts and chain anchors to minimise mast deflection under heavy loads. Multiple 2‑stage mast options and specially designed carriages reduce capacity derate when side‑shifting, preserving close to full rated capacity in varied operating conditions.

Excellent visibility
Low‑profile carriages and optimized routing of hydraulic hoses and valves improve operator sightlines to fork tips. Curved, scratch‑resistant tempered glass, FOPS‑rated armored glass top windows and one‑piece steel‑framed glass doors provide wide all‑around visibility; sloping counterweights enhance view of steer tyres for improved maneuverability.

Ergonomic cab
The high‑visibility cab is designed for operator comfort and productivity: lateral sliding seat, adjustable steering column and pedal, ergonomic controls and a full‑colour screen for performance data, combined with the largest entry area in the sector for easier ingress/egress.

Easily serviceable
Service technicians benefit from gull‑wing hoods for rapid access to key components, a tilting cab for hydraulic access, generous access bays for radiator cleaning and hydraulic sight gauges for quick fluid checks. Galvanized, slip‑resistant running boards simplify daily inspections.

Models and specifications
H18XDS9 | 18,000 kg | 900 mm | 7,000 mm | 4,934 mm | 2,923 mm | 27,669 kg | MTU 7.7L Diesel | ZF - 5WG211
H18XDS | 18,000 kg | 900 mm | 7,000 mm | 5,250 mm | 2,923 mm | 27,052 kg | MTU 7.7L Diesel | ZF - 5WG211
H20XD9 | 20,000 kg | 900 mm | 7,000 mm | 5,250 mm | 2,923 mm | 28,858 kg | MTU 7.7L Diesel | ZF - 5WG211
H20XDS9 | 20,000 kg | 900 mm | 7,000 mm | 4,934 mm | 2,923 mm | 30,030 kg | MTU 7.7L Diesel | ZF - 5WG211

Technical specifications

• Series / Model designation: H18‑20XD (H18XDS9, H18XDS, H20XD9, H20XDS9)
• Load capacities: 18,000 kg and 20,000 kg
• Load centre: 900 mm
• Representative lift height: 7,000 mm
• Turning radius: 4,934 mm or 5,250 mm depending on model
• Overall width: 2,923 mm
• Operating weights (examples): 27,052–30,030 kg depending on model
• Engine: MTU 7.7L Diesel
• Transmission: ZF - 5WG211
• Design highlights: ultra‑compact short wheelbase, reinforced mast and carriage, greaseable load rollers, high‑visibility ergonomic cab, service‑friendly access
