Diesel forklift H25-32XD
ride-onhandling4-wheel

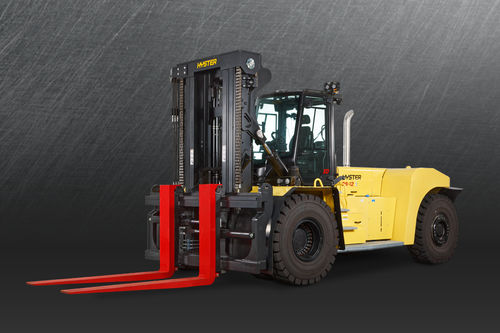

Diesel forklift - H25-32XD - HYSTER - ride-on / handling / 4-wheel
Diesel forklift - H25-32XD - HYSTER - ride-on / handling / 4-wheel
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, high-performance, heavy-duty, pneumatic tire, for heavy loads
Carrying capacity

Min.: 21,950 kg
(48,391.5 lb)

Max.: 32,000 kg
(70,547.9 lb)

Lifting height

9,860 mm
(388.19 in)

Overall width

3,220 mm, 3,430 mm
(126.8 in, 135 in)

Overall length

8.3 mm, 8.7 mm, 9 mm, 9.1 mm, 9.6 mm
(0.3 in, 0.3 in, 0.4 in, 0.4 in, 0.4 in)

Load center distance

900 mm, 1,200 mm
(35.4 in, 47.2 in)

Weight without load

Min.: 37,985 kg
(83,742.6 lb)

Max.: 46,262 kg
(101,990.3 lb)

Axle loading with maximum load front

Min.: 58.2 kg
(128.3 lb)

Max.: 71.9 kg
(158.5 lb)

Axle loading with maximum load rear

Min.: 4.5 kg
(9.9 lb)

Max.: 6.1 kg
(13.4 lb)

Axle loading without load front

Min.: 19.2 kg
(42.3 lb)

Max.: 23.5 kg
(51.8 lb)

Axle loading without load rear

Min.: 18.7 kg
(41.2 lb)

Max.: 22.7 kg
(50 lb)

Track width front

2.3 mm, 2.4 mm
(0.1 in, 0.1 in)

Track width rear

2.3 mm, 2.4 mm
(0.1 in, 0.1 in)

Height of mast when lowered

4.1 mm, 4.2 mm
(0.2 in, 0.2 in)

Overall height with mast raised

6.2 mm, 6.4 mm
(0.2 in, 0.3 in)

Height to top of overhead guard

Min.: 3.4 mm
(0.1 in)

Max.: 3.7 mm
(0.1 in)

Seat height

2.2 mm, 2.3 mm
(0.1 in, 0.1 in)

Tow couplig height

1 mm, 935 mm
(0 in, 36.8 in)

Length to fork face

Min.: 5.9 mm
(0.2 in)

Max.: 7.1 mm
(0.3 in)

Fork carriage width

3 mm, 3.2 mm
(0.1 in, 0.1 in)

Ground clearance under mast with load

219 mm, 227 mm
(8.6 in, 8.9 in)

Ground clearance at center of wheelbase with load

406 mm, 502 mm
(16 in, 19.8 in)

Turning circle radius

5,326 mm, 5,691 mm, 6,185 mm, 6,848 mm
(209.7 in, 224.1 in, 243.5 in, 269.6 in)

Travel speed

25 km/h
(15.5 mph)

Lifting speed

0.28 m/s, 0.34 m/s
(0.919 ft/s, 1.115 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Min.: 196 kN

Max.: 245 kN

Gradeability

Min.: 27 %

Max.: 42 %

Rated speed

1,800 rpm, 2,000 rpm, 2,200 rpm
(11,309.7 rad.min-1, 12,566.4 rad.min-1, 13,823 rad.min-1)

Maximum operating pressure

22.5 MPa

Oil flow

100 l/min
(26.4 us gal/min)

Description

Solid and agile heavy-duty forklifts that deliver proven performance and low running costs •Extensive attachment options •Energy efficiency •Ergonomic cab •Excellent visibility •Easily serviceable SOLID MACHINES HAVE PROVEN THEIR RELIABILITY AND STRENGTH. With nine models to suit specific heavy-duty applications, the H25-32XD series provides high productivity, reliability, fuel efficiency and outstanding driver comfort to deliver an excellent return on investment. These solid machines have proven their reliability and strength in heavy applications around the world, particularly in aluminium, steel, block and container handling applications. EXTENSIVE ATTACHMENT OPTIONS A wide range of different carriages, forks, mast and front-end attachments, including container spreaders and coil rams, are available. The dual function carriage design – with quick disconnect forks for fast attachment exchange and standard sideshift with fork-positioners – offers unique flexibility to handle many different types of loads.
