Combustion engine forklift H8-18XD
ride-onhandling4-wheel

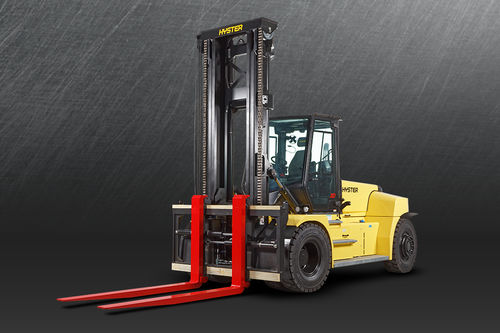

Combustion engine forklift - H8-18XD - HYSTER - ride-on / handling / 4-wheel
Combustion engine forklift - H8-18XD - HYSTER - ride-on / handling / 4-wheel
Combustion engine forklift - H8-18XD - HYSTER - ride-on / handling / 4-wheel - image - 2
Combustion engine forklift - H8-18XD - HYSTER - ride-on / handling / 4-wheel - image - 3
Combustion engine forklift - H8-18XD - HYSTER - ride-on / handling / 4-wheel - image - 4
Combustion engine forklift - H8-18XD - HYSTER - ride-on / handling / 4-wheel - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
combustion engine
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, heavy-duty
Carrying capacity

Max.: 18,200 kg
(40,124.1 lb)

Min.: 8,500 kg
(18,739.3 lb)

Lifting height

7,000 mm
(275.59 in)

Overall width

2,541 mm
(100 in)

Overall length

Max.: 8.1 mm
(0.3 in)

Min.: 5.5 mm
(0.2 in)

Load center distance

600 mm, 900 mm, 1,200 mm
(23.6 in, 35.4 in, 47.2 in)

Weight without load

Max.: 23,461 kg
(51,722.7 lb)

Min.: 13,270 kg
(29,255.3 lb)

Axle loading with maximum load front

Max.: 37.3 kg
(82.2 lb)

Min.: 20.1 kg
(44.3 lb)

Axle loading with maximum load rear

Max.: 3.5 kg
(7.7 lb)

Min.: 1.7 kg
(3.7 lb)

Axle loading without load front

Max.: 10.2 kg
(22.5 lb)

Min.: 7 kg
(15.4 lb)

Axle loading without load rear

Max.: 12.6 kg
(27.8 lb)

Min.: 6.1 kg
(13.4 lb)

Track width front

1.8 mm
(0.1 in)

Track width rear

2 mm
(0.1 in)

Height of mast when lowered

Max.: 4.2 mm
(0.2 in)

Min.: 3.9 mm
(0.2 in)

Overall height with mast raised

6.3 mm, 6.6 mm
(0.2 in, 0.3 in)

Height to top of overhead guard

Max.: 3.3 mm
(0.1 in)

Min.: 3.1 mm
(0.1 in)

Seat height

1.9 mm
(0.1 in)

Tow couplig height

661 mm, 689 mm
(26 in, 27.1 in)

Length to fork face

Max.: 5.6 mm
(0.2 in)

Min.: 4.3 mm
(0.2 in)

Fork carriage width

2.4 mm, 2.5 mm
(0.1 in, 0.1 in)

Ground clearance under mast with load

225 mm, 245 mm, 253 mm
(8.9 in, 9.6 in, 10 in)

Ground clearance at center of wheelbase with load

313 mm, 341 mm
(12.3 in, 13.4 in)

Turning circle radius

Max.: 5,920 mm
(233.1 in)

Min.: 4,111 mm
(161.9 in)

Travel speed

Max.: 30.9 km/h
(19.2 mph)

Min.: 26.8 km/h
(16.7 mph)

Lifting speed

Max.: 0.67 m/s
(2.198 ft/s)

Min.: 0.33 m/s
(1.083 ft/s)

Lowering speed

Max.: 0.54 m/s
(1.772 ft/s)

Min.: 0.45 m/s
(1.476 ft/s)

Rated drawbar pull

Max.: 125 kN

Min.: 95 kN

Gradeability

Max.: 53 %

Min.: 27 %

Rated output

116 kW, 129 kW
(157.7 hp, 175.4 hp)

Rated speed

1,800 rpm, 2,200 rpm, 2,300 rpm
(11,309.7 rad.min-1, 13,823 rad.min-1, 14,451.3 rad.min-1)

Maximum operating pressure

195 bar
(2,828.2 psi)

Oil flow

100 l/min
(26.4 us gal/min)

Noise level

74 dB, 102 dB

Description

Heavy duty forklift trucks with high uptime and low TCO in demanding applications. •Stage V compliant •Optimum serviceability •Ergonomic cab •Robust chassis design •Low cost of ownership •Excellent visibility •Scalability between the various models INCREASED PRODUCTIVITY. REDUCED EMISSIONS. The H9-18XD series is the latest evolution of Hyster® 9-18 tonne capacity lift trucks with 20 models to meet technological developments, changes in legislation and customer needs. With Stage V engines, businesses can expect low running costs in terms of fuel and AdBlue® consumption, heightening productivity and lowering the Total Cost of Ownership in demanding applications where cost pressures are having a big impact. STAGE V COMPLIANT •To help customer meet legislation and move towards a sustainable future, the H9-18XD series provides you with stage V compliant engine with all the benefits that come with it. Such as combining a Selective Catalytic Reduction (SCR), a Diesel Exhaust Fluid (DEF) like AdBlue® and a Diesel Particulate Filter (DPF). •For easy access and heat rejection, both after-treatment units are packed in one box and conveniently positioned on the outside of the truck. •All this allows for compliance to the Stage V requirement without compromising on the Hyster promised performance.
