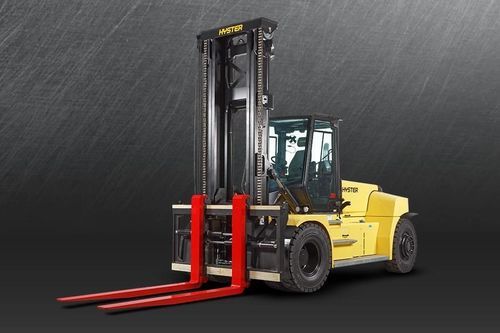

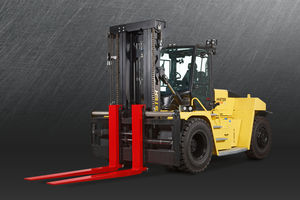

Diesel forklift H8-18XD

ride-onfor materials handlingindustrial

Overview Heavy duty forklift trucks with high uptime and low total cost of ownership (TCO) for demanding applications. The H8-18XD range delivers increased productivity and reduced emissions through Stage V compliant engines and scalable configurations to meet different application needs.

Key features

• Stage V compliant engine architecture (SCR + DEF/AdBlue + DPF) for emissions regulation compliance
• Optimum serviceability: gull-wing hoods, tilting cab for quick access, large access bay and easy radiator cleaning
• Ergonomic cab with armoured glass top window, curved front and rear windows, steel doors with tempered glass, lateral sliding seat, adjustable steering column and foot pedal
• Robust chassis design: strong frame, wide drive axle, 2-stage mast with chains positioned outside for improved visibility
• Low cost of ownership: integrated powertrain, on-demand hydraulics and adjustable steering angle to reduce tyre wear
• Excellent visibility: open carriage design, increased space between mast channels and sloping counterweights
• Scalability across models: multiple configurations and special engineering options enabling parts crossover across the series

Models and specifications (table) Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight
H8XD6 | 8500kg | 600mm | 7000mm | 5731mm | 2541mm | 13270kg
H9XD6 | 9500kg | 600mm | 7000mm | 5731mm | 2541mm | 13804kg
H9XDL6 | 9500kg | 600mm | 7000mm | 4111mm | 2541mm | 13535kg
H10XDS6 | 10500kg | 600mm | 7000mm | 5920mm | 2541mm | 14883kg
H10XD6 | 10500kg | 600mm | 7000mm | 4637mm | 2541mm | 14470kg
H10XD12 | 10500kg | 1200mm | 7000mm | 4637mm | 2541mm | 18631kg
H12XD12 | 12500kg | 1200mm | 7000mm | 4953mm | 2541mm | 19754kg
H12XD6 | 12500kg | 600mm | 7000mm | 4637mm | 2541mm | 15882kg
H13XDS6 | 13500kg | 600mm | 7000mm | 4637mm | 2541mm | 18629kg
H13XD6 | 13500kg | 600mm | 7000mm | 4637mm | 2541mm | 17806kg
H14XDS6 | 14500kg | 600mm | 7000mm | 4637mm | 2541mm | 19328kg
H14XD12 | 14500kg | 1200mm | 7000mm | 4953mm | 2541mm | 22353kg
H14XD6 | 14500kg | 600mm | 7000mm | 4637mm | 2541mm | 18483kg
H16XDS12 | 16400kg | 1200mm | 7000mm | 4968mm | 2541mm | 23461kg
H16XD12 | 16400kg | 1200mm | 7000mm | 5200mm | 2541mm | 22681kg
H16XD9 | 16400kg | 900mm | 7000mm | 5200mm | 2541mm | 21006kg
H16XDS9 | 16400kg | 900mm | 7000mm | 4953mm | 2541mm | 21654kg
H16XD6 | 16500kg | 600mm | 7000mm | 4637mm | 2541mm | 19459kg
H18XD9 | 18200kg | 900mm | 7000mm | 5200mm | 2541mm | 22181kg
H18XD6 | 18200kg | 600mm | 7000mm | 4953mm | 2541mm | 20897kg

Downloads (document titles)

• H8-18XD tech guide
• XD Cab Brochure
• H8-18XD Brochure

Characteristics / Technical specifications

• Capacity range: 8000–18200 kg (models cover 8t up to 18.2t capacities)
• Stage V emissions system: SCR + Diesel Exhaust Fluid (AdBlue®) + Diesel Particulate Filter (DPF)
• Operator display: 7-inch full-colour Integrated Performance Display with on-board diagnostics
• Serviceability features: gull-wing hoods, tilting cab, broad slip-resistant running boards, large access bay for radiator cleaning
• Cab ergonomics: largest entry area in class, lateral sliding seat, adjustable steering column and pedals, cast counterweight to minimise bounce
• Mast and carriage: 2-stage mast options, chains positioned outside for improved visibility, open carriage design and slimline top bars
• Powertrain and hydraulics: integrated powertrain and on-demand hydraulics for low fuel consumption
• Steering: adjustable steering behaviour with selectable maximum steering angle to reduce tyre wear
• Scalability: multiple configurations and special engineering options to suit applications (reversing fan, handling attachments, etc.)
