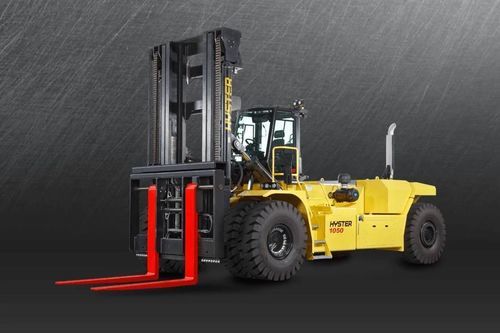

Diesel forklift H36-48XDride-onharbormining and quarrying
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- for materials handling, industrial, harbor, mining and quarrying
- Other characteristics
- heavy-duty, pneumatic tire, for heavy loads
- Carrying capacity
Min.: 36,000 kg
(79,366.4 lb)Max.: 48,000 kg
(105,821.9 lb)- Lifting height
9,894 mm
(389.53 in)- Overall width
4,200 mm
(165.4 in)- Overall length
10.1 mm, 10.2 mm, 10.6 mm, 10.7 mm
(0.4 in, 0.4 in, 0.4 in, 0.4 in)- Load center distance
1,200 mm
(47.2 in)- Weight without load
Min.: 50,120 kg
(110,495.7 lb)Max.: 60,963 kg
(134,400.4 lb)- Axle loading with maximum load front
Min.: 83.4 kg
(183.9 lb)Max.: 101.7 kg
(224.2 lb)- Axle loading with maximum load rear
Min.: 5.1 kg
(11.2 lb)Max.: 7.1 kg
(15.7 lb)- Axle loading without load front
Min.: 31 kg
(68.3 lb)Max.: 31.9 kg
(70.3 lb)- Axle loading without load rear
Min.: 21.4 kg
(47.2 lb)Max.: 28.9 kg
(63.7 lb)- Track width front
3.1 mm
(0.1 in)- Track width rear
3.1 mm
(0.1 in)- Height of mast when lowered
5.2 mm
(0.2 in)- Overall height with mast raised
7.3 mm
(0.3 in)- Height to top of overhead guard
Min.: 3.9 mm
(0.2 in)Max.: 4.1 mm
(0.2 in)- Seat height
2.7 mm
(0.1 in)- Tow couplig height
750 mm
(29.5 in)- Length to fork face
Min.: 7.7 mm
(0.3 in)Max.: 8.3 mm
(0.3 in)- Fork carriage width
3.2 mm
(0.1 in)- Ground clearance under mast with load
371 mm
(14.6 in)- Ground clearance at center of wheelbase with load
452 mm
(17.8 in)- Turning circle radius
Min.: 7,100 mm
(279.5 in)Max.: 7,791 mm
(306.7 in)- Travel speed
19 km/h, 20 km/h, 25 km/h
(11.8 mph, 12.4 mph, 15.5 mph)- Lifting speed
0.26 m/s, 0.3 m/s, 0.31 m/s
(0.853 ft/s, 0.984 ft/s, 1.017 ft/s)- Lowering speed
0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)- Gradeability
Min.: 26 %
Max.: 39 %
- Rated speed
1,300 rpm, 1,400 rpm
(8,168.1 rad.min-1, 8,796.5 rad.min-1)- Maximum operating pressure
22.5 MPa
- Oil flow
110 l/min
(29.1 us gal/min)
Description
Overview
Hyster® H36–48XD series heavy-duty forklift trucks designed for the most demanding industrial applications (ports, metal handling, quarrying, mining). Robust frame and mast architecture, proven components and service-oriented design deliver long uptime and predictable operating costs.
Key features
Intelligent design
Heavy-duty masts and carriages are engineered for long load centres, wide and specialty loads and sustained heavy-duty cycles. Apron side-shift carriages minimise capacity derate to preserve rated capacity. Greaseable load rollers and reinforced mast channels, rollers, stub shafts and chain anchors reduce mast deflection. Short wheelbase options improve compactness and turning radius in constrained spaces.
Low Cost of Ownership
Integrated powertrain and on-demand hydraulics reduce fuel consumption while maintaining productivity. Engines use high-pressure injection systems and variable-geometry turbochargers where specified. Advanced electronic controls optimise performance, fuel economy and component life to lower operating cost per shift.
Easily serviceable
Service access is designed for technicians: powered tilting operator compartment, large removable floor plates and routine checks without cab tilt. Major engine and drivetrain items operate on 500-hour intervals; hydraulic oil change intervals up to 2000 hours reduce downtime and service frequency.
Operator comfort
Ergonomic high-visibility cab with armored top window, curved front and rear windows, and steel doors with tempered glass. Spacious entry, full-colour performance display, laterally sliding seat, adjustable steering column and ergonomic controls improve operator efficiency and reduce fatigue. Sloped counterweights enhance view of steer tyres for safer manoeuvring.
Performance optimisation
Features include cooling on demand, load-sensing hydraulics, RPM management, alternate engine idle modes and oil-immersed multi-plate brakes with cooling. Heavy-duty drive axle with reinforced spindles and double reduction provides stability. Powertrain protections and class-leading travel and lift speeds reduce operating time per task.
Models and specifications (table)
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight | Engine | Transmission
H36XDS12 | 36000kg | 1200mm | 9894mm | 7100mm | 4200mm | 52385kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H40XD12 | 40000kg | 1200mm | 9894mm | 7791mm | 4200mm | 50120kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H40XDS12 | 40000kg | 1200mm | 9894mm | 7100mm | 4200mm | 55525kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H44XDS12 | 44000kg | 1200mm | 9894mm | 7100mm | 4200mm | 57754kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H44XD12 | 44000kg | 1200mm | 9894mm | 7791mm | 4200mm | 52350kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H48XD12 | 48000kg | 1200mm | 9894mm | 7791mm | 4200mm | 55150kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H48XDS12 | 48000kg | 1200mm | 9894mm | 7100mm | 4200mm | 60963kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
Technical characteristics / specifications
Hyster® H36–48XD series heavy-duty forklift trucks designed for the most demanding industrial applications (ports, metal handling, quarrying, mining). Robust frame and mast architecture, proven components and service-oriented design deliver long uptime and predictable operating costs.
Key features
- Intelligent heavy-duty design
- Low cost of ownership
- Service-friendly access
- Operator comfort and visibility
- Performance optimisation
Intelligent design
Heavy-duty masts and carriages are engineered for long load centres, wide and specialty loads and sustained heavy-duty cycles. Apron side-shift carriages minimise capacity derate to preserve rated capacity. Greaseable load rollers and reinforced mast channels, rollers, stub shafts and chain anchors reduce mast deflection. Short wheelbase options improve compactness and turning radius in constrained spaces.
Low Cost of Ownership
Integrated powertrain and on-demand hydraulics reduce fuel consumption while maintaining productivity. Engines use high-pressure injection systems and variable-geometry turbochargers where specified. Advanced electronic controls optimise performance, fuel economy and component life to lower operating cost per shift.
Easily serviceable
Service access is designed for technicians: powered tilting operator compartment, large removable floor plates and routine checks without cab tilt. Major engine and drivetrain items operate on 500-hour intervals; hydraulic oil change intervals up to 2000 hours reduce downtime and service frequency.
Operator comfort
Ergonomic high-visibility cab with armored top window, curved front and rear windows, and steel doors with tempered glass. Spacious entry, full-colour performance display, laterally sliding seat, adjustable steering column and ergonomic controls improve operator efficiency and reduce fatigue. Sloped counterweights enhance view of steer tyres for safer manoeuvring.
Performance optimisation
Features include cooling on demand, load-sensing hydraulics, RPM management, alternate engine idle modes and oil-immersed multi-plate brakes with cooling. Heavy-duty drive axle with reinforced spindles and double reduction provides stability. Powertrain protections and class-leading travel and lift speeds reduce operating time per task.
Models and specifications (table)
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight | Engine | Transmission
H36XDS12 | 36000kg | 1200mm | 9894mm | 7100mm | 4200mm | 52385kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H40XD12 | 40000kg | 1200mm | 9894mm | 7791mm | 4200mm | 50120kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H40XDS12 | 40000kg | 1200mm | 9894mm | 7100mm | 4200mm | 55525kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H44XDS12 | 44000kg | 1200mm | 9894mm | 7100mm | 4200mm | 57754kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H44XD12 | 44000kg | 1200mm | 9894mm | 7791mm | 4200mm | 52350kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H48XD12 | 48000kg | 1200mm | 9894mm | 7791mm | 4200mm | 55150kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
H48XDS12 | 48000kg | 1200mm | 9894mm | 7100mm | 4200mm | 60963kg | Mercedes-Benz 10.7L Diesel | Dana S.O.H TE 30
Technical characteristics / specifications
- Commercial series: H36–48XD
- Rated capacities: 36,000 kg to 48,000 kg
- Standard load centre: 1200 mm
- Typical lift height (example): 9894 mm
- Turning radius examples: 7100 mm or 7791 mm (model dependent)
- Overall width (typical): 4200 mm
- Operating weights: approx. 50,120 kg to 60,963 kg depending on model
- Engine: Mercedes-Benz 10.7L Diesel (as specified) / alternative engine options may be available
- Transmission: Dana S.O.H TE 30
- Service intervals: major engine/drivetrain ~500 hours; hydraulic oil change up to 2000 hours
- Design highlights: heavy-duty mast and carriage, greaseable load rollers, reinforced drive axle with double reduction, on-demand hydraulics, cooling on demand
