Spray disinfection unit IDA

fogfor vehiclesfor livestock buildings

Product overview

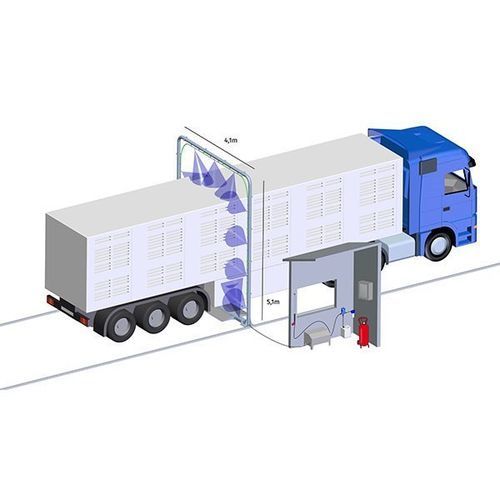

IDA is a modular vehicle disinfecting and washing system designed for livestock and animal breeding farms to prevent the spread of disease and viruses. The system integrates pump, dosing, connection, wheel/frame and arch disinfection modules and is suitable for factories and farms that require compliance with strict hygiene standards. Assembly is bolted and requires no special tools.

Main features

• Modular system including pump, dosing/filtering, connection kits, wheel/frame disinfection, disinfection arch and platform kits.
• Application: disinfection and washing of vehicles and chassis in animal breeding and livestock farms.
• Automatic and manual operation options: photocells, control and safety valves, pressure gauge and indicator light.
• Materials: galvanized steel frames and AISI 304 stainless steel piping for exposed lines.

Modules included in the IDA modular system

• Pump module kit: ZX.9900
• Disinfectant filtering and dosing kit: ZX.9922
• Connection kit: ZX.9902
• Wheel and frame disinfection kit: ZX.9907 and ZX.9903
• Disinfection arch kit: ZX.9908 and ZX.9904
• Platform kit: ZX.9911
• Packing crate: SCQ.0002

Kit composition (example: ZX.9999)
The kit composition lists the modular components and sub-kits that form the complete solution. Quantities shown correspond to the module descriptions below.

ZX.9900 (Pump module)
Operating pressure 100 bar, flow rate 21 l/min. Frame in galvanized steel with stainless steel cover. Complete with:

• Electric motor 3x400V - 1450 rpm
• Camshaft pump HP 150 bar, 21 l/min with 3 ceramic pistons and brass head
• Control valve and safety valve
• Pressure gauge
• Photocells for automatic operation
• Flashing indicator light during operation
• ON-OFF manual control with anti-ice kit

Quantity: 1

ZX.9902 (Connection kit)
Kit to link pump unit and arch: 4 AISI 304 stainless steel pipes ø14x1.5 mm, 3 m long, inlet/outlet fittings, 12 anti-vibration brackets and flexible hose for connections.
Quantity: 1

ZX.9907 (Metal frame kit)
Metal base frames: 5 galvanized steel base frames 71 cm bolted together, plus two galvanized stainless steel struts 110 cm.
Quantity: 1

ZX.9903 (Line kit)
Line kit including 6 flexible hoses, 16 fog nozzles and necessary couplings.
Quantity: 1

ZX.9908 (Metal structure kit)
Metal structure: 6 galvanized steel columns 110 cm and 3 galvanized steel beams 110 cm, bolted assembly.
Quantity: 1

ZX.9904 (Line kit)
Line kit including 10 flexible hoses, 7 fog nozzles and couplings.
Quantity: 1

ZX.9911 (Platform kit)
Platform kit of 4 galvanized steel platforms, attachable to the wheel disinfection frame by bolts.
Quantity: 1

Optional accessories

• 8.2002S — Double-life nebulizer with internal epoxy coating. Equipment: spray gun (internal parts Viton® + SS), 600 mm SS lance with brass fan nozzle, pressure gauge, safety valve, ball valve, 10 m Rilsan spiral hose with anti-twist connection. Max pressure 8 bar.
• ZX.9905 — Pump unit kit with 20 m high-pressure hose, 1200 mm hose with gun and shut-off valves. Washing phase excludes disinfecting phase.
• CDR.2023-25 — Idro Safe 25 L: disinfectant and antibacterial product (medical-surgical device grade).
• ZX.2350-10 — BKD®-Purple 10 L: sanitizer concentrate.

Multimedia
Product page references a demonstration video of the system.

Technical specifications

• Product name (commercial): IDA
• Type: Modular vehicle disinfecting and washing system
• Main application: Disinfection and washing of vehicles and chassis for animal breeding farms
• Pump module (ZX.9900): 100 bar operating pressure, 21 l/min flow rate
• Pump motor: Electric motor 3x400V - 1450 rpm
• Pump: camshaft pump with 3 ceramic pistons and brass head (HP 150 bar, 21 l/min noted in module)
• Materials: galvanized steel frame, stainless steel covers, AISI 304 piping
• Automation: photocells, control and safety valves, pressure gauge, indicator light
• Assembly: bolted modular frames and beams; no special tools required
• Included kits: ZX.9922, ZX.9902, ZX.9907/ZX.9903, ZX.9908/ZX.9904, ZX.9911, SCQ.0002
