Modular disinfection gate IDA 3

for the food industry

Short description
The vehicle disinfecting system easy to assemble

Overview

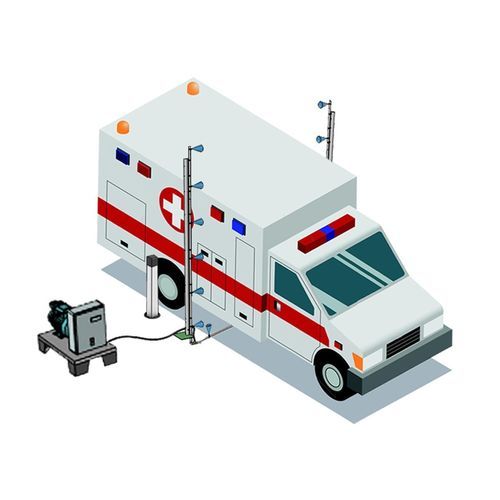

Emergency vehicle disinfection system. IDA is a modular system for disinfecting vehicles and chassis to prevent the spread of diseases and viruses from environments that come into contact with the vehicle. Ideal for factories and farms that must comply with strict health and hygiene standards. Easy to assemble; no special tools required.

Standard equipment

• Frame kit: Supporting structure with 2" carbon steel pipes, hot dip galvanized.
• R1 210bar hose: Flexible hose with steel mesh, 1/2" connection, 10 m length.
• Pump unit: Water supply. Electrical system 3x400V - 50Hz with pressure switch and water inlet solenoid valve, mounted on a 80x40x(H)15 cm pallet. 20 l/min, max pressure 8 bar.
• Photocell: Photocell to activate the system automatically.

Optionals

• ZX.9995 (optional kit/variant)
• CDR.2023-25 - Idro Safe 25L: Disinfectant and antibacterial product of medical surgical device grade.
• ZX.2350-10 - BKD®-Purple 10L: Sanitizer concentrate.

Technical specifications

• System type: Modular vehicle/chassis disinfection system.
• Applications: Emergency vehicle disinfection, factory and farm vehicle hygiene.
• Assembly: Easy to assemble; no special tools required.
• Frame: 2" carbon steel pipes, hot dip galvanized.
• Hose: R1 210bar, steel mesh, 1/2" connection, length 10 m.
• Pump flow: 20 l/min.
• Maximum operating pressure: 8 bar.
• Pump electrical supply: 3x400V - 50Hz.
• Controls: Pressure switch and water inlet solenoid valve included.
• Pallet/mounting: Pump unit mounted on pallet 80 x 40 x (H) 15 cm.
• Activation: Photocell for automatic activation.
• Optional disinfectants/consumables available (Idro Safe 25L, BKD®-Purple 10L).
