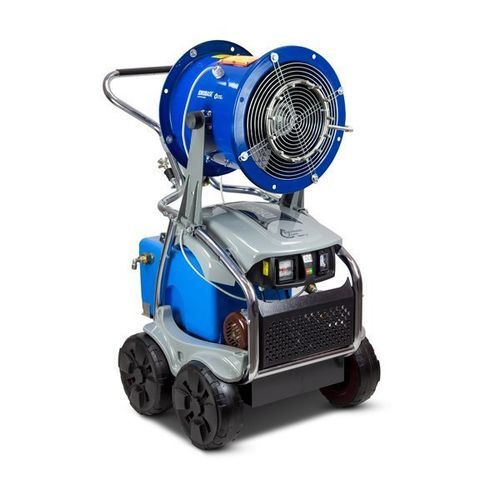

Disinfection fog cannon ZX.8201-L

for environment sanitizationmobile

Product overview
Mobile high-pressure fog maker for surface and ambient disinfection. Compact unit equipped with a fan and a ring of nozzles for fine nebulization; suitable for indoor and outdoor use in medical, sanitary and industrial environments. 30-minute autonomy with 30 L tank; fan jet up to 7 m.

Technical data (table)

• CODE: ZX.8201-L
• Model: LINCE DISINFETTANTE
• Pressure: 60 bar
• Flow rate: 1 L/min
• No. of nozzles: 13
• Drop size: 12 µm
• Power: 0.75 kW
• Weight: 60 kg
• Tank capacity: 30 L
• Preventive maintenance 500 hrs (standard): ZX.50IBG19
• Preventive maintenance 1000 hrs (optional): ZX.100IBG19

Technical features

• Painted steel sheet frame
• 30 L polypropylene tank
• Protection rating: IP54
• Dimensions (W×L×H): 800×650×1200 mm

Fan technical specifications

• No. of nozzles (fan ring): 1 ring with 10 nozzles
• Maximum coverage: 10 m²
• Power absorption: 0.8 kW
• Air jet range: 7 m (no wind)
• Elevation: 0° to +30°
• Fan diameter: 410 mm
• Noise level: < 80 Lw

Pump module technical specifications

• Pressure: 60 bar
• Axial pump module: 1450 Rpm, 2 ceramic pistons
• Electric motor (pump module): 1450 Rpm, 250 W
• Integrated by-pass valve

Standard equipment

• LINCE DISINFECTANT LANCE KIT cod ZX.8201-KD (included)
• Thermoplastic delivery pipe, 8 m
• 900 mm lance with quick nozzle holder
• 40° fan nozzle
• 5-nozzle support
• Nebulization head with 5 nozzles with quick coupling M

Optionals

• CDR.2023-25 - Idro Safe - 25 L (disinfectant and antibacterial, medical-surgical grade)
• ZX.2350-10 - BKD®-Purple 10 L (sanitizer concentrate)

Technical characteristics

• Code: ZX.8201-L
• Commercial name (Model): LINCE DISINFETTANTE
• Pressure: 60 bar
• Flow rate: 1 L/min
• No. of nozzles (total): 13
• No. of nozzles (fan section): 1 ring with 10 nozzles
• Drop size: 12 µm
• Power (pump/motor): 0.75 kW / electric motor 250 W
• Weight: 60 kg
• Tank capacity: 30 L
• Protection rating: IP54
• Dimensions (W×L×H): 800×650×1200 mm
• Fan diameter: 410 mm
• Fan jet range: 7 m (no wind)
• Maximum fan coverage: 10 m²
• Noise level: < 80 Lw
• Pump module: axial, 1450 Rpm, 2 ceramic pistons, integrated by-pass valve
• Preventive maintenance (500 hrs standard): ZX.50IBG19
• Preventive maintenance (1000 hrs optional): ZX.100IBG19
• Included lance kit: ZX.8201-KD (pipe 8 m, lance 900 mm, 40° fan nozzle, 5-nozzle support, nebulization head with 5 nozzles)
