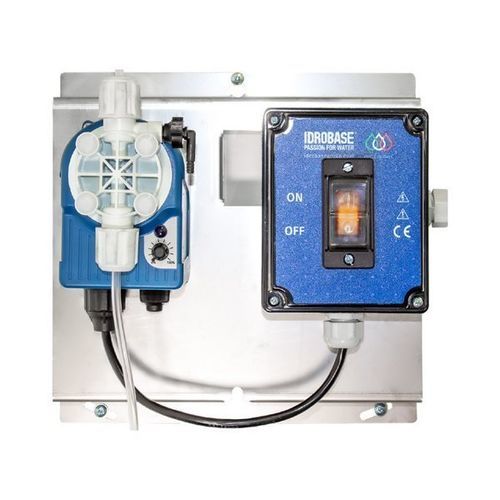

Liquid disinfectant dosing dispenser SaniFog Fisso

liquidswatervolumetric

Product overview
Dosing kit designed for fog/nebulization modules to inject an adjustable proportion of product into the water circuit of high‑pressure nebulization systems. Mixing ratios adapt according to the flow rate of the high‑pressure pump.

Functionality
The kit proportionally supplies a measured quantity of product into the system's water network. Dosing percentage is adjustable and varies automatically with the high‑pressure pump flow to maintain the selected concentration.

Highlights

• Electrical connections: Prepared for direct connection to 230V 50‑60Hz mains. Depending on the high‑pressure system used, wiring can be made in parallel with the electric motor or via specific control panel connections.
• Water connections: Designed for direct connection to the filtration inlet using a Tee fitting and a non‑valve return.
• Dosing pump characteristics: Max pump flow rate: 0.03 l/min at 7 bar. Dosage adjustment range: 10–100%.

Compatibility
Can be combined with Fog Eco, Fog 60, Fog Box, Fog 70 modules, as well as Fog Extra and Humi Extra.

Warnings
Consult the product technical documentation for full technical and safety information. For specific precautions and use instructions of any disinfectant/sanitizing product, always refer to that product's technical and safety data sheet. When used with disinfectant/sanitizing solutions, the SaniFog Fisso must be rinsed after use following the procedure in the instruction manual.

Optionals

• CDR.2023-25 — Idro Safe - 25L. Disinfectant and antibacterial product of medical‑surgical device grade.
• ZX.2350-10 — BKD®-Purple 10L. Sanitizer concentrate.

Technical data
CODE
ZX.2326

Caractéristiques / spécifications techniques

• Model / Code: ZX.2326
• Function: Dosing kit for fog/nebulization modules
• Max pump flow rate: 0.03 l/min at 7 bar
• Dosage adjustment range: 10–100%
• Electrical supply: Prepared for direct connection to 230V 50‑60Hz mains
• Water connections: Designed for direct connection to the filtration inlet with a Tee fitting and non‑valve return
• Compatible modules: Fog Eco, Fog 60, Fog Box, Fog 70, Fog Extra, Humi Extra
• Optionals references: CDR.2023-25 (Idro Safe 25L), ZX.2350-10 (BKD®-Purple 10L)
• Important: Requires rinsing after use when employed with disinfectant/sanitizing solutions; consult technical and safety documentation for disinfectant‑specific precautions
