Disinfection gate ADI

SYSTEM FOR PEOPLE SANITIZATION

How the system works

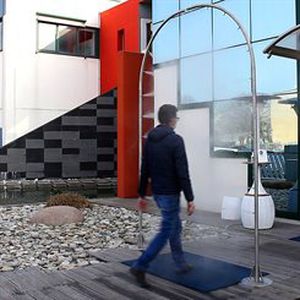

The ADI is an automated walk-through sanitization system. When a person passes between the two semi-arches, photocells trigger a fine nebulization that covers the person from feet to head without wetting clothing. The micro-droplets (≈10 μm) penetrate fabric pores during passage and help reduce microbial contamination on surfaces.

Technical data (table)
CODE: ZX.2198
Model: ADI
Number of nozzles: 16
Pressure: 60 bar
Flow rate: 0.7 l/min
Droplet size: 10 μm
Drives per 50L tank: ~450
Power: 200 W (230 V - 50 Hz)
Dimensions: 2000 x 450 x (H)2350 mm
Weight: 40 kg

Standard equipment

• 2 semi-arches in AISI304 with 16 nozzles (ø10 mm) — 8 nozzles per semi-arch
• Pump unit: single-phase electric pump, 60 bar, 2 plungers, 0.7 l/min
• Electric control system with programmable operating time
• Liquid suction kit from the tank, with float valve for automatic stop
• High-density 50 L polyethylene tank (LxWxH: 41 x 30 x 45 cm)
• High-pressure polyamide pipe ø9.6 mm, rolls of 25 m (black)
• 2 photocells with pedestals for system activation
• Plastic platform for ground connection of the two semi-arches

Technical features

• 16 nozzles
• ~450 activations per 50 L tank
• Operating pressure: 60 bar

Specifications / technical data

• Model: ADI
• Code: ZX.2198
• Number of nozzles: 16 (8 per semi-arch)
• Operating pressure: 60 bar
• Flow rate: 0.7 l/min
• Droplet size: 10 μm
• Activations per 50 L tank: ~450
• Power: 200 W (230 V - 50 Hz)
• Dimensions: 2000 x 450 x (H)2350 mm
• Weight: 40 kg
