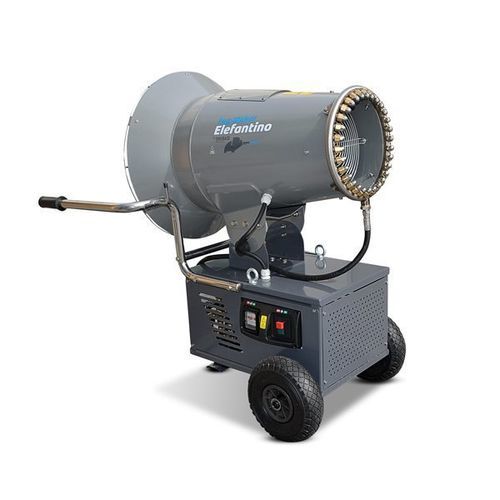

Dust control fog cannon ELEFANTINO LAVAGGIO

for disinfectionfor environment sanitizationmobile

Product overview
The ELEFANTINO LAVAGGIO is a combined fogging unit and high-pressure washer designed for airborne pathogen prevention, dust suppression (PM10) and cleaning of polluted surfaces. The system integrates misting for environmental treatment with a high-pressure washing module for surface cleaning.

Key features

• 2-in-1: fogging (air pollution reduction and dust suppression) plus high-pressure washing for surface cleaning.
• A-KIT LAVAGGIO PROFY with H.P HOSE cod. ZL.1KCY6 (included):
• PRO1 spray gun, inlet M22x1,5 M, F swivel ball outlet KW type
• CdR 80 lance, 700 mm, M quick inlet KW type, nozzle 25°
• Piuma brass foam lance, M quick inlet KW type
• High-pressure hose R1 5/16”, 315 bar, 20 m, M22x1,5 F-F

Technical data

• ZX.8403-L — ELEFANTINO LAVAGGIO 15: Pressure 80 bar; Flow rate 15 l/min; Drop size 24 mcr; Power 4.4 kW (3x400V-50Hz); Weight 100 kg; Preventive maintenance: standard ZX.75IBG03, optional ZX.150IBG03
• ZX.8404-L — ELEFANTINO LAVAGGIO 21: Pressure 70 bar; Flow rate 21 l/min; Drop size 24 mcr; Power 5.2 kW (3x400V-50Hz); Weight 123 kg; Preventive maintenance: standard ZX.75IBG03, optional ZX.150IBG03

Warning
All technical and safety information is provided in the Idrobase Group S.r.l. technical documentation. For precautions and methods of use of any disinfectant/sanitizing product, always consult the product's safety data sheet. The use of the ELEFANTINO LAVAGGIO with disinfectant/sanitizing solutions requires rinsing after use following the instructions in the machine manual.

Technical features

• Painted steel-sheet frame
• Pneumatic wheels
• Lifting hook
• Protection rating: IP54
• Dimensions WxLxH: 640 x 920 x 12050 mm

Fan technical specifications

• No. of nozzles: 1 ring with 30 nozzles
• Maximum coverage: 150 m2
• Power absorption: 2.2 kW 2800 g/min
• Fan jet: 21 (without wind)
• Elevation: 0° to +40°
• Fan diameter: 410 mm
• Noise: < 87 Lwa

Pump module technical specifications

• Pressure: up to 80 bar (model dependent)
• Pump module: 1450 rpm, rod movement, brass head, 3 ceramic pistons
• Axial pump options: 1450 rpm 2.2 kW for 15 l/min, 3 kW for 21 l/min
• Integrated by-pass valve

Standard equipment

• WASHING KIT included: RED 40 spray gun, inlet M22x1,5 M, F swivel ball outlet KW type
• CdR 80 lance, 700 mm, quick inlet M type KW, nozzle 25°
• Traditional foam lance, M quick inlet KW type
• H.P. hose R1 5/16”, 315 bar, 20 m, M22x1,5 F-F

Specifications / technical characteristics

• Series: ELEFANTINO LAVAGGIO
• Model variants: ELEFANTINO LAVAGGIO 15 (ZX.8403-L) and ELEFANTINO LAVAGGIO 21 (ZX.8404-L)
• Pressures: 80 bar (15 model), 70 bar (21 model)
• Flow rates: 15 l/min (15 model), 21 l/min (21 model)
• Drop size: 24 mcr
• Electrical power: 4.4 kW (15 model), 5.2 kW (21 model) — (3x400V-50Hz)
• Weight: 100 kg (15 model), 123 kg (21 model)
• Fan coverage: up to 150 m2; fan diameter 410 mm; elevation 0° to +40°
• Protection rating: IP54
• Pump: rod movement, brass head, 3 ceramic pistons; axial pump options for different flows
• Included washing kit and high-pressure hose (20 m, 315 bar)
