Commercial mist system ZX.FA series

high-pressureoutdoor

Product overview

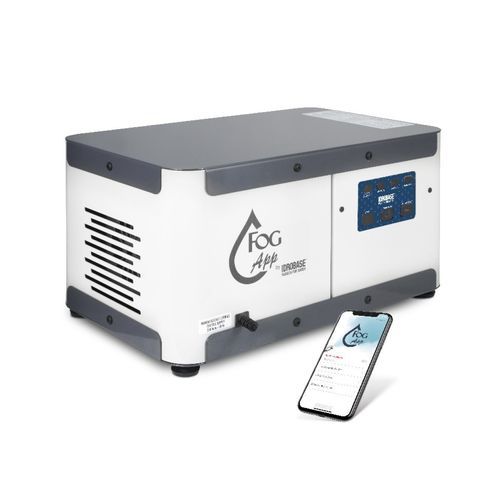

FOG APP is an outdoor misting cooling system designed to refresh bars, restaurants, patios and gazebos in small to medium areas. The unit integrates with ventilation and in-line cooling systems and offers Bluetooth smartphone control for on-site scheduling and remote management.

Highlights

• Significant ambient temperature reduction with high-pressure micro-mist
• Slip-Lock connectors: water inlet ø9.6 mm, outlet ø6.35 mm
• Advanced mode: up to 20 programmable time slots; customizable work/pause durations per slot (min work 3 s; min pause 15 s)
• Simple mode: select days of week, up to 4 time slots; configurable work/pause times (min work 3 s; min pause 15 s)
• Nonstop mode for continuous operation
• Low-noise operation suitable for hospitality environments
• Also helps reduce flying insects in the treated area

Technical data (table)
CODE | Model | No. of nozzles 50Hz* | Pressure | Flow rate 50Hz | Power absorption | Weight
ZX.FA1.5 | FOG APP 1.5 | 30 | 60 bar | 1.5 l/min | 180 W (230V-50/60 Hz) | 10 kg
ZX.FA2.0 | FOG APP 2.0 | 40 | 60 bar | 2.0 l/min | 250 W (230V-50/60 Hz) | 10 kg
*Maximum nozzle count calculated with nozzle factor 015 (0.047 l/min) at 60 bar.
FOG APP is compatible with Linea kit ZX.KL30 and ZX.KL40; Vento kits ZX.KV6-20, ZX.KV8-20, ZX.KV6-18, ZX.KV8-18, ZX.KV6-360, ZX.KV8-360 and ZX.KV4-P.

Technical features

• Galvanised painted plate frame
• Electric pump: axial 3-piston design with brass head
• Thermal protection against current surge
• Unloader valve for pressure control
• Low-pressure switch to detect water shortage
• Low-pressure solenoid valve at water inlet
• High-pressure solenoid valve for pressure discharge
• Inlet Slip-Lock ø9.6 mm; outlet Slip-Lock ø6.35 mm
• Instrument panel with 3 touch buttons: ON/OFF, manual mode or Bluetooth activation, and alarm reset for maintenance
• App-controlled modes: Nonstop, Simple (up to 4 slots), Advanced (up to 20 slots)
• Dimensions (WxLxH): 415 x 250 x 215 mm

Standard equipment

• Standard water inlet filter, 80 micron AISI 304 stainless steel mesh; designed to work with IT.0581 water supply kit

Optionals

• IT.0581 — Water supply kit with mesh filter and 3 m Fog module connection pipe
• ZX.2322 — Water hardness analysis kit
• ZX.8074-RC — 10” water inlet kit + 0.2-2% dispenser and pressure stabilizer
• ZX.0695-7UV-RC — 7” water inlet kit + UV sterilizer and pressure stabilizer for hard water
• ZX.069-UV-RC — 7” water inlet kit + UV sterilizer and pressure stabilizer (standard water)
• ZX.0696-7-RC — 7” water inlet kit with pressure stabilizer for hard water

Technical specifications

• Series / Commercial name: FOG APP
• Available models: FOG APP 1.5 (code ZX.FA1.5) and FOG APP 2.0 (code ZX.FA2.0)
• Maximum nozzles (basis): 30 (1.5) / 40 (2.0) at 60 bar using nozzle factor 015 (0.047 l/min)
• Nominal pressure: 60 bar
• Flow rates: 1.5 l/min (FOG APP 1.5); 2.0 l/min (FOG APP 2.0)
• Power absorption: 180 W (FOG APP 1.5); 250 W (FOG APP 2.0) — 230 V 50/60 Hz
• Weight: 10 kg (both models)
• Water connections: inlet Slip-Lock ø9.6 mm; outlet Slip-Lock ø6.35 mm
• Pump type: 3-piston axial pump with brass head
• Controls: instrument panel with 3 touch buttons; Bluetooth enablement and smartphone app control with scheduling modes
• Dimensions: 415 x 250 x 215 mm (WxLxH)
• Standard filter: 80 micron AISI 304 stainless steel mesh
