Industrial mist system Fog 70 Touch

high-pressure

Product overview

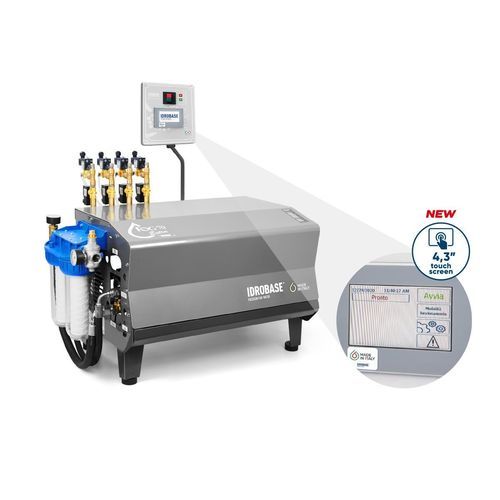

Fog 70 Touch is an industrial high-pressure fog/misting module (70/80 bar) designed for industrial misting applications. Configurations cover from 13 up to 560 nozzles; power supply is 3x400V-50Hz. The module is highly compact, allows installation of accessories directly on the unit and offers local control via PLC and touchscreen, with optional remote management.

Main features

• Highly compact design
• Possibility of installing accessories directly on the module
• Control panel with PLC and touchscreen (available in 7 languages)
• Optional remote management (Ethernet or Wi‑Fi kits)

Highlights

• Onboard PLC and touchscreen for module management, interface available in 7 languages
• Optional remote control: interaction with the system from a remote terminal (Ethernet or Wi‑Fi kits)
• Compatible with Sani Fog fisso

Technical data (table)
CODE | Model | Pressure | Flow rate | N. nozzles* | Power 3x400V-50Hz | Weight | Preventive maintenance 750 hrs (standard) | Preventive maintenance 1500 hrs (optional)
ZX.F70T01 | FOG 70 TOUCH-1 | 80bar | 1l/min | 13* | 1,5Kw | 58kg | ZX.75IP01 | ZX.150IP01
ZX.F70T02 | FOG 70 TOUCH-2 | 80bar | 2l/min | 27* | 1,5Kw | 58kg | ZX.75IBG01 | ZX.150IBG01
ZX.F70T04 | FOG 70 TOUCH-4 | 80bar | 4l/min | 53* | 1,5Kw | 58kg | ZX.75IBG10 | ZX.150IBG10
ZX.F70T06 | FOG 70 TOUCH-6,5 | 80bar | 6,5l/min | 87* | 1,5Kw | 58kg | ZX.75IBG10 | ZX.150IBG10
ZX.F70T08 | FOG 70 TOUCH-8 | 80bar | 8l/min | 107* | 1,5Kw | 58kg | ZX.75IBG10 | ZX.150IBG10
ZX.F70T11 | FOG 70 TOUCH11 | 70bar | 11l/min | 147* | 1,5Kw | 58kg | ZX.75IBG02 | ZX.150IBG02
ZX.F70T13 | FOG 70 TOUCH-13 | 80bar | 13l/min | 173* | 2,2 Kw | 61kg | ZX.75IBG02 | ZX.150IBG02
ZX.F70T15 | FOG 70 TOUCH-15 | 80bar | 15l/min | 200* | 2,2 Kw | 61kg | ZX.75IBG08 | ZX.150IBG08
ZX.F70T18 | FOG 70 TOUCH-18 | 80bar | 18l/min | 240* | 3 Kw | 66kg | ZX.75IBG04 | ZX.150IBG04
ZX.F70T21 | FOG 70 TOUCH-21 | 80bar | 21l/min | 280* | 3 Kw | 66kg | ZX.75IBG13 | ZX.150IBG13
ZX.F70T26 | FOG 70 TOUCH-26 | 80bar | 26l/min | 347* | 4Kw | 80kg | ZX.75IBG06 | ZX.150IB06
ZX.F70T33 | FOG 70 TOUCH-33 | 70bar | 33l/min | 440* | 6,3Kw | 98kg | ZX.75IBG06 | ZX.150IBG06
ZX.F70T42 | FOG 70 TOUCH-42 | 70bar | 42l/min | 560* | 6,3Kw | 98kg | ZX.75IBG07 | ZX.150IBG07

* The maximum number of nozzles has been calculated using an IT.204C nozzle with flow rate 020 (0,075 l/min) at 70 bar

Technical features
Frame made of painted steel
Professional crankshaft pump with brass head and 3 ceramic plungers
Electric motor 1450 g/min, 3x400V-50Hz, S1
Brass unloader valve
Pressure gauge with glycerine, AISI 304 stainless steel
Low-pressure solenoid inlet valve 24V-50Hz
High-pressure solenoid valve 24V-50Hz to discharge line pressure
High-pressure switch for no water supply and pipe breaks
General thermal switch
3/4” M inlet
1/2” M outlet
Control panel with thermal switch, PLC and touchscreen to manage the module
Dimensions WxLxH: 780 x 450 x 500 mm

Technical specifications

• Frame material: painted steel
• Pump type: professional crankshaft pump with brass head and 3 ceramic plungers
• Motor: 1450 g/min, 3x400V-50Hz, S1
• Operating pressure: nominal 70–80 bar depending on model
• Flow rates available: from 1 l/min up to 42 l/min (model dependent)
• Nozzles: maximum number per model shown in technical table (calculation based on IT.204C nozzle at 70 bar)
• Inlet / outlet: 3/4” M inlet, 1/2” M outlet
• Valves and protection: brass unloader valve, glycerine pressure gauge (AISI 304), low-pressure solenoid inlet valve 24V-50Hz, high-pressure solenoid discharge valve 24V-50Hz, high-pressure switch for no water / pipe break, general thermal switch
• Control: onboard control panel with thermal switch, PLC and touchscreen; remote control optional (Ethernet / Wi‑Fi kits)
• Dimensions (WxLxH): 780 x 450 x 500 mm
• Weight and power: model-dependent (see technical table for each code)
