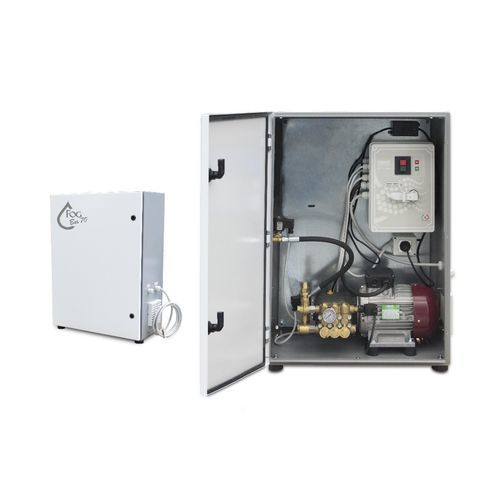

FOG Box — fog module available in 60 bar (axial pump) and 70 bar (professional crankshaft pump) versions; nozzle count from 43 to 146 depending on model.

60bar version

• Axial motor pump with 3 ceramic‑tipped steel pistons, nickel‑plated brass head and integrated bypass, 230V‑50Hz
• Solenoid valve low pressure (l.p.) water inlet 230V‑50Hz
• High pressure (H.p.) solenoid valve for line pressure discharge 230V‑50Hz
• Power supply 1x230V - 50/60Hz
• Low pressure (l.p.) pressure switch for lack of water

70bar professional version

• Professional crankshaft pump with 3 ceramic plungers and brass head
• Electric motor 3x400V‑50Hz, 1450 rpm
• Solenoid valve low pressure (l.p.) water inlet
• High pressure (H.p.) solenoid valve for line pressure discharge 24V‑50Hz
• High pressure switch for no water supply and pipe breaks

Technical data
CODE | Model | Pump type | Pressure | Flow rate 50Hz | Flow rate 60Hz | N. of nozzles 50Hz | No of nozzles 60Hz | Power 230V‑50/60Hz | Weight | Preventive maintenance 500 hrs (standard) | Preventive maintenance 100 hrs (optional)
ZX.BR60-2UV | FOG Box 60-2 | axial pump with 3 pistons | 60bar | 2 l/min | 2.4 l/min | 43 | 51 | 720W | 65Kg | ZX.50IBG20 | ZX.100IBG20
ZX.BR60-4UV | FOG Box 60-4 | axial pump with 3 pistons | 60bar | 4 l/min | 4.8 l/min | 85 | 102 | 950W | 29Kg | ZX.50IBG20 | ZX.100IBG20
ZX.BR60-6UV | FOG Box 60-6 | axial pump with 3 pistons | 60bar | 6 l/min | 6 l/min | 70 | 88 | 1180W | 65Kg | ZX.50IBG20 | ZX.100IBG20
ZX.BR70-11 | FOG Box 70-11 | crankshaft pump with 3 pistons | 70bar | 11 l/min | - | 146 | - | 1.5KW | 80Kg | ZX.75IBG20 | ZX.150IBG20
ZX.BR70-6 | FOG Box 70-6 | crankshaft pump with 3 pistons | 70bar | 5.6 l/min | - | 74 | - | 1.5KW | 80Kg | ZX.75IBG20 | ZX.150IBG20
ZX.BR70-8 | FOG Box 70-8 | crankshaft pump with 3 pistons | 70bar | 8 l/min | - | 106 | - | 1.5KW | 80Kg | ZX.75IBG20 | ZX.150IBG20

Additional technical notes
Axial motor pump: 3 ceramic‑coated steel pistons, head in nickel‑plated brass, integrated bypass valve, electric motor 1350 rpm.
Crankshaft pump: 3 ceramic pistons, brass head, integrated bypass valve, electric motor 1450 rpm.
Frame made of painted steel with insulation seal.
Double lock closure.
Electrical panel with ON/OFF switch, 3 m power cable and presetting for remote control connection.
Dimensions WxLxH: 800 x 300 x 1000 mm.
Can be combined with Sani Fog fisso.

Characteristics / technical specifications

• Series: FOG Box
• Pressure options: 60 bar (axial pump versions) and 70 bar (professional crankshaft versions)
• Flow rates (50Hz): from 2 l/min up to 11 l/min depending on model
• Flow rates (60Hz): up to 6 l/min where specified
• Nozzle counts (50Hz): from 43 up to 146 depending on model; 60Hz counts where specified
• Power range: 720W to 1.5KW depending on model
• Weight range: 29 Kg to 80 Kg depending on model
• Power supply: 1x230V 50/60Hz (standard 60bar versions) or 3x400V 50Hz (some 70bar professional versions)
• Pump types: axial motor pump (ceramic‑tipped pistons) and crankshaft pump (ceramic plungers)
• Preventive maintenance kits referenced by codes (standard and optional intervals)
• Dimensions: 800 x 300 x 1000 mm
