Plunger pump ZX.MTPF70-1 series
waterwith electric motorstationary

Plunger pump - ZX.MTPF70-1 series - Idrobase Group Srl - water / with electric motor / stationary
Plunger pump - ZX.MTPF70-1 series - Idrobase Group Srl - water / with electric motor / stationary
Plunger pump - ZX.MTPF70-1 series - Idrobase Group Srl - water / with electric motor / stationary - image - 2
Add to favorites
Compare this product
Go to the Idrobase Group Srl website for more information

Characteristics

Technology
plunger
Fluid
water
Operation
with electric motor
Mobility
stationary
Applications
high-pressure
Material
stainless steel, ceramic
Voltage
400 V, 230 V
Other characteristics
with electronic control, ball bearing, four-ball
Flow

Max.: 0.9 m³/h
(31.7832 ft³/h)

Min.: 0.66 m³/h
(23.30768 ft³/h)

Pressure

70 bar
(1,015.264 psi)

Power

Max.: 2.2 kW
(2.99 hp)

Min.: 1.5 kW
(2.04 hp)

Input diameter

12.7 mm
(0.5 in)

Output diameter

9.525 mm
(0.375 in)

Weight

29 kg
(63.93 lb)

Description

Product description

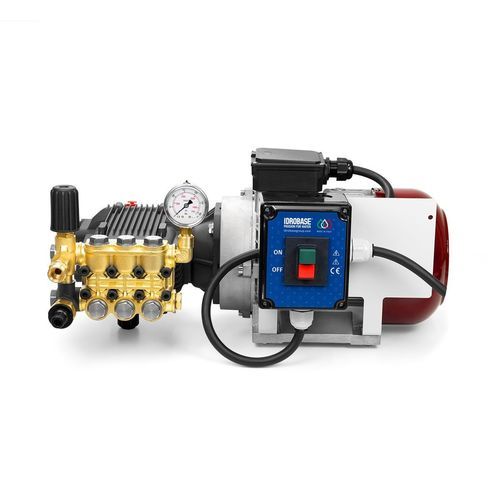

4 ball-bearing motor-pump unit, pre-assembled and tested, complete with: electric motor 400V-50Hz 1450 Rpm, crankshaft pump with three ceramic plungers, stainless steel pressure gauge and electric control panel with thermal switch and three-meter power cable. Inlet 1/2 M. Outlet 3/8 M.

Included components
  • Electric motor 400V-50Hz, 1450 Rpm
  • Crankshaft pump with three ceramic plungers
  • Stainless steel pressure gauge
  • Electric control panel with thermal switch
  • Three-meter power cable
  • Inlet 1/2 M, Outlet 3/8 M

Technical data (table)
CODE | Pressure | Flow rate | N° of nozzles | Power 230V-50Hz | Weight | Preventive maintenance 750hrs (standard) | Preventive maintenance 1500 hrs (optional)
ZX.MTPF70-11D | 70 bar | 11 l/min | 147 | 1.5 kW | 29 Kg | ZX.50D01 | ZX.100ID01
ZX.MTPF70-15D | 70 bar | 15 l/min | 200 | 2.2 kW | 29 Kg | ZX.50D01 | ZX.50D02

Optionals
  • ZX.MTPF70-15D
  • ZX.MTPF70-11D

Technical characteristics / specifications
  • Model series: 4 ball-bearing motor-pump unit
  • Electric motor: 400V-50Hz, 1450 Rpm
  • Available codes/models: ZX.MTPF70-11D, ZX.MTPF70-15D
  • Nominal pressure: 70 bar
  • Flow rates: 11 l/min (ZX.MTPF70-11D) and 15 l/min (ZX.MTPF70-15D)
  • Number of nozzles: 147 (11 l/min) or 200 (15 l/min)
  • Power (230V-50Hz): 1.5 kW (11 l/min), 2.2 kW (15 l/min)
  • Weight: 29 Kg
  • Preventive maintenance standard (750 hrs): ZX.50D01
  • Preventive maintenance optional (1500 hrs): ZX.100ID01 (for ZX.MTPF70-11D) or ZX.50D02 (for ZX.MTPF70-15D)
  • Pump type: crankshaft pump with three ceramic plungers
  • Accessories included: stainless steel pressure gauge, electric control panel with thermal switch, 3 m power cable
  • Hydraulic connections: Inlet 1/2 M, Outlet 3/8 M
