Industrial mist system FOG 70 NEUTRA-ODORI

high-pressure

Product

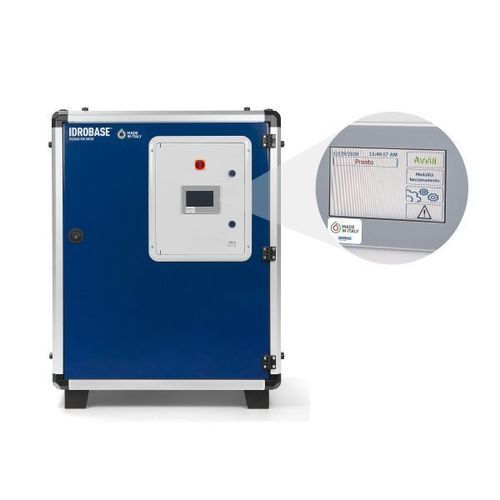

Industrial fog module FOG 70 NEUTRA-ODORI available with 114 or 186 nozzles, designed for 3x400V-50Hz electrical systems.

Overview

• Complete system including filtration and mechanical dispenser
• 950 rpm pump unit suitable for continuous operation
• Control panel with PLC and touchscreen for local management
• Optional remote management capabilities

Highlights

• OPTIONAL: Remote control — interact with the system from a remote terminal
• Mechanical proportional dispenser 0.2–2%
• Control panel with PLC and touchscreen, interface available in 7 languages

Technical data
CODE | Model | Pressure | Flow rate | N. nozzles* | Power 3x400V-50Hz | Weight | Preventive maintenance 750 hrs (standard) | Preventive maintenance 1500 hrs (optional)
ZX.8211 | FOG 70 NEUTRA-ODORI | 70 bar | 8.6 l/min | 114 | 1.5 kW | 75 kg | ZX.75IBG02 | ZX.150IBG02
ZX.8215 | FOG 70 NEUTRA-ODORI | 70 bar | 14 l/min | 186 | 3 kW | 78 kg | ZX.75IBG13 | ZX.150IBG13

* The maximum number of nozzles has been calculated using a nozzle IT.204C with flow rate 020 (0.075 l/min) at 70 bar.

Technical features

• Frame made of aluminium
• Professional crankshaft pump with brass head and 3 ceramic plungers
• Electric motor 940g/min, 3x400V-50Hz, S1
• Brass unloader valve
• Glycerine-filled pressure gauge in AISI 304 stainless steel
• 24V-50Hz solenoid valve for low-pressure water inlet
• 24V-50Hz high-pressure solenoid valve to discharge line pressure
• High-pressure switch for lack of water supply and pipe breaks
• 3/4" M inlet
• 1/2" M outlet
• Control panel with thermal switch, PLC and touchscreen to manage the module
• Dimensions WxLxH: 800 x 560 x 1000 mm

Optionals (examples)

• ZX.2322 — Water hardness analysis kit
• ZX.0905-10 — Water supply kit, 10 m with screw quick couplings
• ZX.1277 — Ethernet remote control kit for PLC
• ZX.1279 — Wi‑Fi remote control kit for PLC
• ZX.1260-24DC / ZX.1260-24AC / ZX.1260-38 — Manifold kits (various valve options)
• ZX.8074-RC — 10" water inlet kit + 0.2-2% dispenser and pressure stabilizer
• ZX.0302 / ZX.0302-UV-RC / ZX.0302-PUVRC — 10" water inlet kits with/without UV sterilizer and pressure stabilizer

Specifications

• Model: FOG 70 NEUTRA-ODORI
• Available codes: ZX.8211, ZX.8215
• Operating pressure: 70 bar
• Flow rates: 8.6 l/min (ZX.8211) and 14 l/min (ZX.8215)
• Number of nozzles (max): 114 (ZX.8211) and 186 (ZX.8215) — calculated with nozzle IT.204C flow 0.075 l/min at 70 bar
• Power (3x400V-50Hz): 1.5 kW (ZX.8211), 3 kW (ZX.8215)
• Weight: 75 kg (ZX.8211), 78 kg (ZX.8215)
• Preventive maintenance (standard 750 hrs): ZX.75IBG02 (ZX.8211) / ZX.75IBG13 (ZX.8215)
• Preventive maintenance (optional 1500 hrs): ZX.150IBG02 (ZX.8211) / ZX.150IBG13 (ZX.8215)
• Frame material: aluminium
• Pump: professional crankshaft pump with brass head and 3 ceramic plungers
• Motor spec: 940g/min, 3x400V-50Hz, S1
• Unloader valve: brass
• Pressure gauge: glycerine filled, AISI 304 stainless steel
• Solenoid valves and switches: water inlet solenoid 24V-50Hz; H.P. solenoid 24V-50Hz for pressure discharge; H.P. switch for no water supply and pipe breaks
• Inlet/outlet: 3/4" M inlet, 1/2" M outlet
• Control: thermal switch, PLC and touchscreen (available in 7 languages)
• Dimensions (WxLxH): 800 x 560 x 1000 mm
