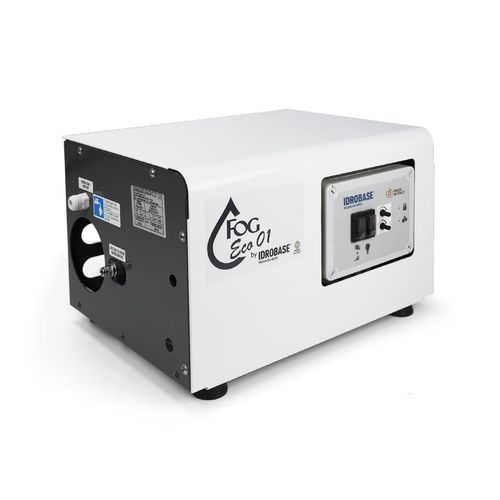

Water sprayer ZX.509 series

electrichigh-pressurefor handling low-to-moderate volumes

Overview
Compact and versatile solution for cooling, producing fog effects and humidifying small and medium-sized areas. Equipped with an integrated analog timer to optimize cycle operation in varied environmental conditions.

Highlights

• Significant temperature reduction
• Slip-Lock connectors for water inlet ø9.6 mm and outlet ø6.35 mm
• Does not wet surfaces
• Quiet operation
• Helps deter mosquitoes

Technical data (table)
CODE | Model | No. of nozzles | Pressure | Flow rate | Power absorption | Weight
ZX.5090 | FOG ECO1 | 20 | 60 bar | 1 l/min | 200W (1x230V-50Hz) | 15 kg
ZX.5095 | FOG ECO 0.5 | 10 | 60 bar | 0.5 l/min | 1250W (1x230V-50Hz) | 15 kg

Max nozzle count calculated using a nozzle with flow factor 15 (0.047 l/min) at 60 bar.
FOG ECO is compatible with: Kit Linea ZX.KL10 and ZX.KL20; Vento Kits ZX.KV2-20, ZX.KV4-20, ZX.KV2-18, ZX.KV4-18, ZX.KV2-360, ZX.KV4-360, and ZX.KV2-P.

Technical features

• Frame: painted steel
• Axial motor pump with two ceramic pistons (0.5 and 1 l/min) with bypass valve
• Electric control panel with pre-settings ON-OFF 0-60s (integrated analog timer)
• High-pressure solenoid valve for pressure discharge
• Pressure switch — stops water supply at low pressure
• Slip-Lock inlet ø9.6 mm
• Slip-Lock outlet ø6.35 mm
• Dimensions LxDxH: 450 x 300 x 280 mm

Standard equipment

• Water inlet filter with 80 micron AISI 304 stainless steel mesh supplied as standard. Works with water supply kit IT.0581.

Optionals

• ZX.2373 — WiFi socket for ON/OFF control by smartphone
• IT.0581 — Water supply kit with mesh filter and Fog module 3 m water connection pipe
• ZX.2322 — Water hardness analysis kit
• ZX.8074-RC — 10” water inlet kit + 0.2-2% dispenser and pressure stabilizer
• ZX.0695-7UV-RC — 7” water inlet kit + UV sterilizer and pressure stabilizer for hard water
• ZX.069-UV-RC — 7” water inlet kit + UV sterilizer and pressure stabilizer (normal water)
• ZX.0696-7-RC — 7” water inlet kit with pressure stabilizer for hard water

Specifications

• Commercial name: FOG ECO
• Pressure: 60 bar
• Flow rate: 1 l/min (FOG ECO1) or 0.5 l/min (FOG ECO 0.5)
• Max no. of nozzles: 20 (FOG ECO1), 10 (FOG ECO 0.5) — calculated with nozzle factor 15 (0.047 l/min) at 60 bar
• Power absorption: 200W (1x230V-50Hz) for 1 l/min; 1250W (1x230V-50Hz) for 0.5 l/min
• Weight: 15 kg
• Dimensions: 450 x 300 x 280 mm (L x D x H)
• Frame: painted steel
• Pump: axial motor pump with two ceramic pistons; bypass valve included
• Control: electric control panel with pre-settings ON-OFF 0-60s (integrated analog timer)
• Inlet/outlet: Slip-Lock inlet ø9.6 mm; Slip-Lock outlet ø6.35 mm
• Standard filter: 80 micron AISI 304 stainless steel mesh
• Compatibility: Kit Linea ZX.KL10 / ZX.KL20 and multiple Vento Kits (ZX.KV...)
