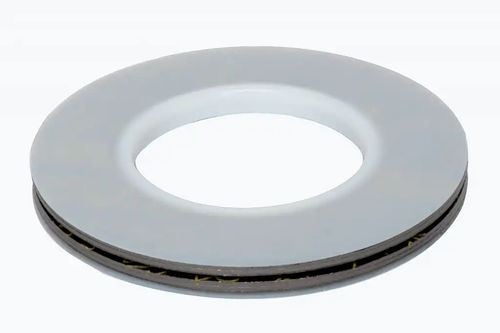

Flat gasket 7154ED30roundgraphitePTFE
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Configuration
- round
- Material
- graphite, PTFE
- Application
- flange
- Other characteristics
- corrugated, envelope
- Temperature limit
Max.: 260 °C
(500 °F)Min.: -269 °C
(-452 °F)- Pressure limit
40 bar
(580.2 psi)
Description
The PTFE envelope is made of TFM™ 1600 with an inner diffusion barrier (3 mm wide), a corrugated ring (1.4571) and two graphite inserts in SIGRAFLEX® Email (each 2 mm thick). The seal features high resilience and is recommended by leading enamel flange manufacturers from DN 250 upwards; it is however available in all nominal widths.
