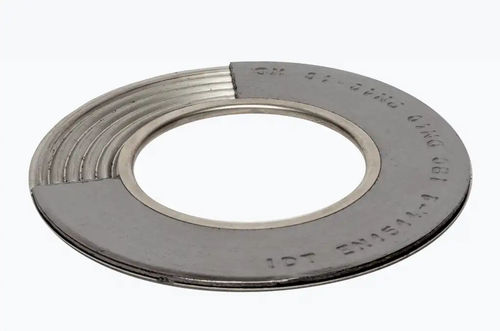

Flat gasket 8711WD20

roundmediumstainless steel

The gasket comprises a corrugated stainless steel core (1.4571) with graphite layer on either side and a stainless steel inner eyelet(1.4571). The inner eyelet prevents the graphite layer from impacting the flow medium. Gasket characteristics DIN 2505 V K0×Kd [N/mm] - 12 × bd k1 [mm] - 1,1 × bd Gasket characteristics DIN 28090 бVO [N/mm²] - 230 бVU 0,1 [N/mm²] - 12 m (DIN 28090) - 1.1 бBO 300 °C [N/mm²] - 200 Gasket characteristics ASME m (ASME) - 2.5 Y [PSI] - 2000 Approvals and test reports TA Luft 2002 (VDI 24A0/2200) DIN EN13555 (TA Luft 2021) Blow-out resistance Gas (DIN 3535-6) WRAS
