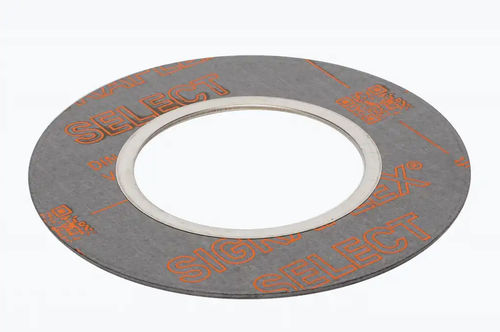

Flat gasket 3830FD10roundstainless steelgraphite
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Configuration
- round
- Material
- graphite, stainless steel
- Temperature limit
Max.: 550 °C
(1,022 °F)Min.: -269 °C
(-452 °F)- Pressure limit
100 bar
(1,450.4 psi)
Description
Newly developed flat gasket system made by SGL. The flat gasket consists of 3 graphite and 2 thin stainless steel foils (1.4401 / s = 0,05 mm). They have a sandwich-style design, while the connection between graphite and stainless steel foil consists of a non-adhesive bond. The gasket also has an inner eyelet. The graphite covering layers are impregnated.
