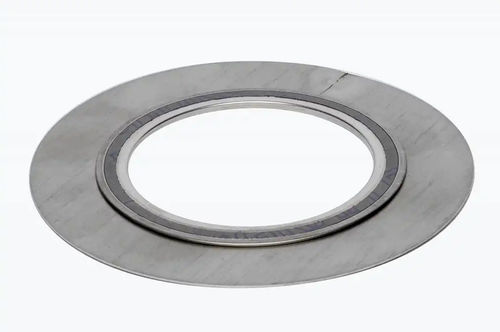

Flat gasket 3885FD33

roundgraphite

The base material SIGRAFLEX® Hochdruck is fitted with an inner and outer eyelet. A centring ring is fitted to the outer eyelet.The double-eyelet channels the graphite which allows the use at temperatures of above 400 °C up to 600 °C. Gasket characteristics DIN 2505 V K0×Kd [N/mm] - 50 × bd k1 [mm] - 1,3 × bd Gasket characteristics DIN 28090 бVO [N/mm²] - 250 бVU 0,1 [N/mm²] - 50 m (DIN 28090) - 1.3 бBO 300 °C [N/mm²] - 200 Gasket characteristics ASME m (ASME) - 2.5 Y [PSI] - 7300 Approvals and test reports TA Luft 2002 (VDI 24A0/2200) BAM oxygen BAM oxygen (liquid) Gas (DIN 3535-6) EG 1935/2004 Flange shapes Self-centering, Raised Face (form IBC) - With partition bars
