- Flat seal
- IDT Industrie- und Dichtungstechnik

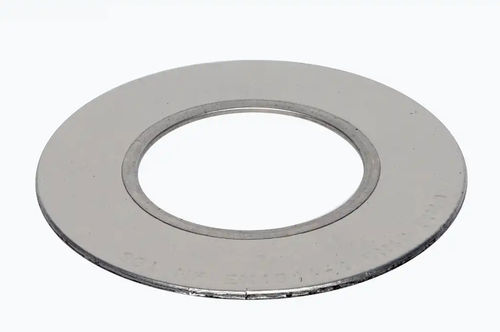

Flat gasket 3870FD10roundstainless steelgraphite
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Configuration
- round
- Material
- graphite, stainless steel, PTFE
- Temperature limit
Max.: 300 °C
(572 °F)Min.: -269 °C
(-452 °F)- Pressure limit
160 bar
(2,320.6 psi)
Description
Core of this gasket consists of a graphite seal with stainless steel insert.The gasket is covered with a thin stainless steel foil (0,05 mm) on both side. This is then covered with a thin PTFE layer (0,05 mm). The gasket models also have an inner eyelet. The system demonstrates excellent sealing properties and can also be used as an alternative for PTFE sealing systems.
