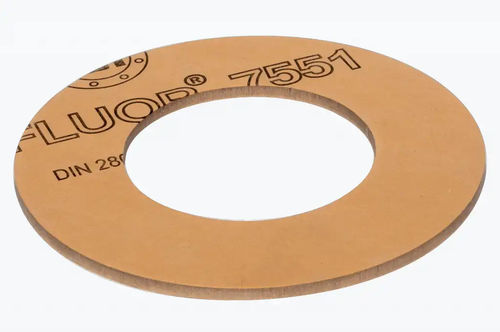

Flat gasket 7551FD01

roundPTFE

UNIFLUOR® WS 7551 is a high quality biaxially orientated sealing material on PTFE basis, filled with quartz. Gasket characteristics EN 13555 Dichtungskennwerte 2 mm (Amtec) - Gasket Characteristics 3 mm (Amtec) - Gasket characteristics DIN 2505 V K0×Kd [N/mm] - 24 × bd k1 [mm] - 1,2 × bd Gasket characteristics DIN 28090 бVO [N/mm²] - 160 бVU 0,1 [N/mm²] - 24 m (DIN 28090) - 1.2 бBO 150 °C [N/mm²] - 110 бBO 200 °C [N/mm²] - 90 Gasket characteristics ASME m (ASME) - 1.5 Y [PSI] - 3700 Approvals and test reports TA Luft 2002 (VDI 24A0/2200) DIN EN13555 (TA Luft 2021) Blow-out resistance FDA (Food) EG 1935/2004 Flange shapes Self-centering, Raised Face (form IBC) - Male-Female (form SR) - Glass-lined, Enamelled flange - Apparatus, customized
