- Flat seal
- IDT Industrie- und Dichtungstechnik

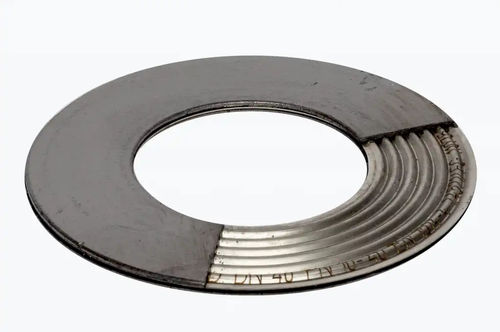

Flat gasket 8711WD10graphitestainless steelround
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Material
- graphite, stainless steel
- Configuration
- round
- Application
- plate
- Temperature limit
Min.: -269 °C
(-452 °F)Max.: 550 °C
(1,022 °F)- Pressure limit
160 bar
(2,320.6 psi)
Description
The gasket consists of a waved stainless steel plate (1.4571) with graphite layer seat on both sides.
Gasket characteristics DIN 2505 V
K0×Kd [N/mm] - 12 × bd
k1 [mm] - 1,1 × bd
Gasket characteristics DIN 28090
бVO [N/mm²] - 230
бVU 0,1 [N/mm²] - 12
m (DIN 28090) - 1.1
бBO 300 °C [N/mm²] - 200
Gasket characteristics ASME
m (ASME) - 2.5
Y [PSI] - 2000
Approvals and test reports
TA Luft 2002 (VDI 24A0/2200)
DIN EN13555 (TA Luft 2021)
Fire Safe Test
Blow-out resistance
Gas (DIN 3535-6)
Flange shapes
Self-centering, Raised Face (form IBC) -
Male-Female (form SR) -
Apparatus, customized -
With partition bars
