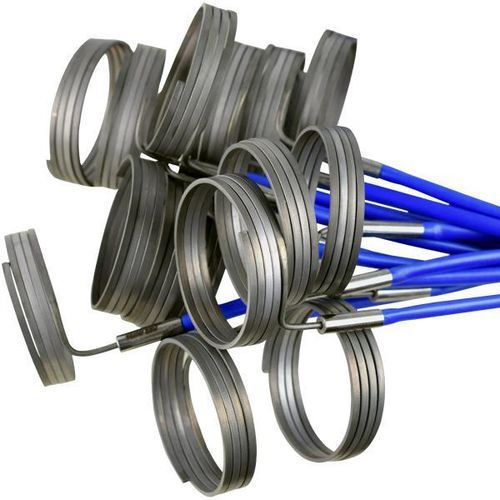

Coil heater

Description
Coil heaters provide high flexibility and can be shaped to fit machine nozzles and ducts by spiralizing straight heating profiles and tubes. This heating method is widely used in semiconductor and printed circuit board production, the pharmaceutical sector, plastics processing, casting, packaging and laboratory equipment manufacturing.

Features
These coil heaters feature a stainless steel or nickel casing and are capable of surface loads up to 32 W/cm². Heat dissipation can be further improved by casting the coil into brass or copper. Optional housings with tension screws serve as reflectors and simplify mounting. Coil heaters are also available in straight lengths for custom adaptation. For precise control, thermocouples type J or K can be integrated optionally.

Technical specification
Surface load up to 32 W/cm²
Working temperature up to 750°C
Casing in stainless steel or nickel
Usual supply 48V, 110V, 230V and 380V
Insulation material: magnesium oxide (MgO)
Power tolerance ±10%
Insulation ≥ 5 MΩ at test voltage 500V DC
Leakage current ≤ 0.5 mA at test voltage 253V AC
High voltage test 800V AC
Integrated thermocouple type J or type K (optional)
Supply cable 1000 mm of PTFA (Nickel-Teflon) as standard

Specifications

• Surface load up to 32 W/cm²
• Working temperature up to 750°C
• Casing in stainless steel or nickel
• Usual supply 48V, 110V, 230V and 380V
• Insulation material: magnesium oxide (MgO)
• Power tolerance ±10%
• Insulation ≥ 5 MΩ at test voltage 500V DC
• Leakage current ≤ 0.5 mA at test voltage 253V AC
• High voltage test 800V AC
• Integrated thermocouple type J or type K (optional)
• Supply cable 1000 mm of PTFA (Nickel-Teflon) as standard
