Nozzle heater 130-Z170 series

circulationstainless steel

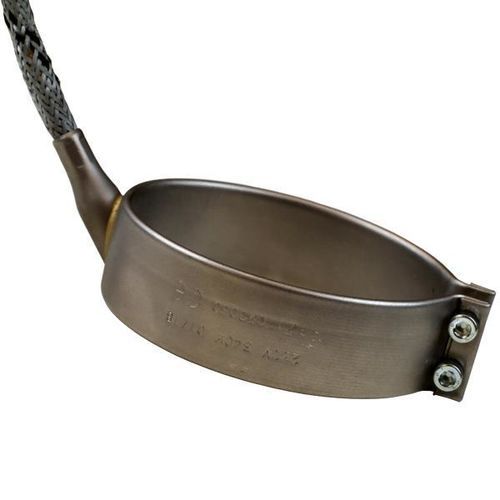

DescriptionNozzle heaters for extrusion and injection molding of plastic profiles, pipes, hoses and similar plastic products. Installed in series on the extruder nozzle to supply the heat required to melt plastic granules and to maintain the melt at the correct temperature during the manufacturing process. Casing in stainless steel AISI304; working temperature up to 400°C.

Melts plastics

• ABS (acrylonitrile butadiene styrene)
• PA (polyamide)
• PC (polycarbonate)
• PE (polyethylene)
• PP (polypropylene)
• PS (polystyrene)
• PVC (polyvinyl chloride)
• TPE (thermoplastic elastomer)
• and others

Cable exitCable exit is axial 45° as standard. IHP also manufactures radial and tangential cable exits and axial cable exits 5°/15°/30° in addition to 45°. Custom exit angles available on request.

Technical specification

• Surface load: up to 8 W/cm²
• Working temperature: up to 400°C
• Standard supply: 230 V (other voltages available on request)
• Optional built-in thermocouple: Type J
• Resistance wire: nickel/chrome 80/20
• Insulation: pure micanite
• Casing: stainless steel AISI304
• Cable exit: axial 45° standard; radial/tangential and other axial angles available
• Metal braided supply cable: 1000 mm with earth
• Largest standard dimensions: ø110 x 60 mm

Standard range130-Z17025030 | 25 | 30 | 130
130-Z17030025 | 30 | 25 | 130
130-Z17030030 | 30 | 30 | 170
130-Z17030035 | 30 | 35 | 200
130-Z17030040 | 30 | 40 | 230
130-Z17035025 | 35 | 25 | 160
130-Z17035030 | 35 | 30 | 200
130-Z17035035 | 35 | 35 | 240
130-Z17035040 | 35 | 40 | 270
130-Z17035045 | 35 | 45 | 310
130-Z17040025 | 40 | 25 | 190
130-Z17040030 | 40 | 30 | 230
130-Z17040035 | 40 | 35 | 270
130-Z17040040 | 40 | 40 | 310
130-Z17040045 | 40 | 45 | 350
130-Z17042025 | 42 | 25 | 200
130-Z17042030 | 42 | 30 | 240
130-Z17042035 | 42 | 35 | 290
130-Z17042040 | 42 | 40 | 330
130-Z17045025 | 45 | 25 | 210
130-Z17045030 | 45 | 30 | 260
130-Z17045035 | 45 | 35 | 310
130-Z17045040 | 45 | 40 | 350
130-Z17045045 | 45 | 45 | 400
130-Z17045050 | 45 | 50 | 450
130-Z17045055 | 45 | 55 | 490
130-Z17050020 | 50 | 20 | 190
130-Z17050025 | 50 | 25 | 240
130-Z17050030 | 50 | 30 | 290
130-Z17050035 | 50 | 35 | 340
130-Z17050040 | 50 | 40 | 390
130-Z17050050 | 50 | 50 | 500
130-Z17050060 | 50 | 60 | 600
130-Z17055020 | 55 | 20 | 210
130-Z17055025 | 55 | 25 | 270
130-Z17055030 | 55 | 30 | 320
130-Z17055035 | 55 | 35 | 380
130-Z17055040 | 55 | 40 | 430
130-Z17055050 | 55 | 50 | 540
130-Z17060020 | 60 | 20 | 230
130-Z17060025 | 60 | 25 | 290
130-Z17060030 | 60 | 30 | 350
130-Z17060035 | 60 | 35 | 410
130-Z17060040 | 60 | 40 | 470
130-Z17060050 | 60 | 50 | 600
130-Z17060060 | 60 | 60 | 720
130-Z17065020 | 65 | 20 | 250
130-Z17065025 | 65 | 25 | 320
130-Z17065030 | 65 | 30 | 380
130-Z17065035 | 65 | 35 | 450
130-Z17065040 | 65 | 40 | 520
130-Z17065050 | 65 | 50 | 650
130-Z17070020 | 70 | 20 | 270
130-Z17070025 | 70 | 25 | 340
130-Z17070030 | 70 | 30 | 410
130-Z17070035 | 70 | 35 | 490
130-Z17070040 | 70 | 40 | 560
130-Z17070050 | 70 | 50 | 700
130-Z17070060 | 70 | 60 | 840
130-Z17075020 | 75 | 20 | 290
130-Z17075025 | 75 | 25 | 370
130-Z17075030 | 75 | 30 | 440
130-Z17075035 | 75 | 35 | 520
130-Z17075040 | 75 | 40 | 560
130-Z17075050 | 75 | 50 | 750
130-Z17075060 | 75 | 60 | 900
130-Z17080020 | 80 | 20 | 310
130-Z17080025 | 80 | 25 | 390
130-Z17080030 | 80 | 30 | 470
130-Z17080035 | 80 | 35 | 560
130-Z17080040 | 80 | 40 | 640
130-Z17080050 | 80 | 50 | 800
130-Z17080060 | 80 | 60 | 960
130-Z17085020 | 85 | 20 | 330
130-Z17085025 | 85 | 25 | 420
130-Z17085030 | 85 | 30 | 500
130-Z17085035 | 85 | 35 | 590
130-Z17085040 | 85 | 40 | 680
130-Z17085050 | 85 | 50 | 850
130-Z17085060 | 85 | 60 | 1020
130-Z17090020 | 90 | 20 | 350
130-Z17090025 | 90 | 25 | 440
130-Z17090030 | 90 | 30 | 540
130-Z17090035 | 90 | 35 | 630
130-Z17090040 | 90 | 40 | 720
130-Z17090050 | 90 | 50 | 900
130-Z17090060 | 90 | 60 | 1080
130-Z17095020 | 95 | 20 | 370
130-Z17095025 | 95 | 25 | 470
130-Z17095030 | 95 | 30 | 570
130-Z17095035 | 95 | 35 | 660
130-Z17095040 | 95 | 40 | 760
130-Z17095050 | 95 | 50 | 950
130-Z17095060 | 95 | 60 | 1150
130-Z17100020 | 100 | 20 | 380
130-Z17100025 | 100 | 25 | 500
130-Z17100030 | 100 | 30 | 600
130-Z17100035 | 100 | 35 | 700
130-Z17100040 | 100 | 40 | 800
130-Z17100050 | 100 | 50 | 1000
130-Z17100060 | 100 | 60 | 1200

Features / technical specifications

• Surface load: up to 8 W/cm²
• Working temperature: up to 400°C
• Standard supply: 230 V (other voltages on request)
• Optional built-in thermocouple: Type J
• Resistance wire: NiCr 80/20
• Insulation: pure micanite
• Casing: stainless steel AISI304
• Cable exit options: axial 45° standard; radial and tangential available; axial 5°/15°/30°/45°
• Metal braided supply cable: 1000 mm with earth
