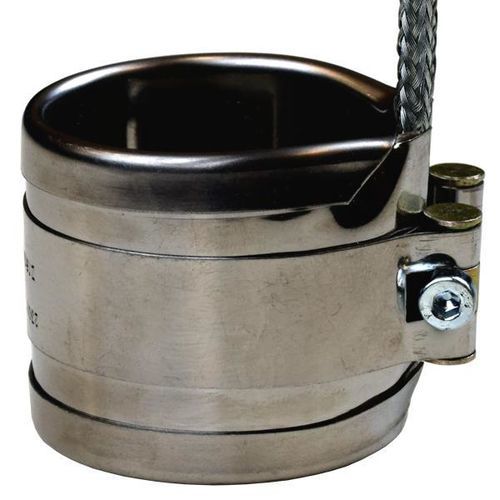

Nozzle heater 136-Z150 series

circulationstainless steel

Product description
Nozzle heaters with stainless steel casing (AISI430) and flexible metal braided leads. Leads are connected on each side of the casing for easy installation in narrow spaces. Designed for contact with molten plastics such as PVC, ABS, PTFE, PEEK and similar polymers. Intended for industrial extrusion and injection-molding applications.

Installation and control
The heaters require a control system with external sensor or an integrated thermocouple type J (optional). Standard inner diameters range from Ø25 mm to Ø100 mm. Multiple power ratings and widths are available to match process requirements. IHP can supply customized voltages and special configurations for production lines.

Related products

• Nozzle heaters brass 320°C
• Nozzle heaters stainless steel 400°C
• Nozzle heaters stainless steel long 400°C
• Nozzle heaters ceramic insulation 450°C
• Nozzle heaters coiled 750°C
• Coil heaters 750°C

Technical specification

• Surface load up to 7W/cm²
• Working temperature up to 370°C
• Supply 230V as standard (other supply can be customized)
• Built-in thermocouple type J as an option
• Resistance wire: nickel/chrome 80/20
• Built-in insulation: pure micanite
• Casing: stainless steel AISI430
• Metal braided supply cable: 1000 mm
• Largest standard diameter and width: Ø110 x 200 mm

Standard range
Article number | Diameter (mm) | Width (mm) | Power (W)
136-Z15025030 | 25 | 30 | 115
136-Z15030025 | 30 | 25 | 125
136-Z15030030 | 30 | 30 | 155
136-Z15030035 | 30 | 35 | 180
136-Z15030040 | 30 | 40 | 205
136-Z15035025 | 35 | 25 | 150
136-Z15035030 | 35 | 30 | 180
136-Z15035035 | 35 | 35 | 210
136-Z15035040 | 35 | 40 | 240
136-Z15035045 | 35 | 45 | 270
136-Z15040025 | 40 | 25 | 170
136-Z15040030 | 40 | 30 | 205
136-Z15040035 | 40 | 35 | 240
136-Z15040040 | 40 | 40 | 275
136-Z15040045 | 40 | 45 | 310
136-Z15042025 | 42 | 25 | 180
136-Z15042030 | 42 | 30 | 215
136-Z15042035 | 42 | 35 | 250
136-Z15042040 | 42 | 40 | 290
136-Z15045025 | 45 | 25 | 190
136-Z15045030 | 45 | 30 | 230
136-Z15045035 | 45 | 35 | 270
136-Z15045040 | 45 | 40 | 310
136-Z15045045 | 45 | 45 | 345
136-Z15045050 | 45 | 50 | 385
136-Z15050020 | 50 | 20 | 170
136-Z15050025 | 50 | 25 | 215
136-Z15050030 | 50 | 30 | 255
136-Z15050035 | 50 | 35 | 300
136-Z15050040 | 50 | 40 | 345
136-Z15050050 | 50 | 50 | 430
136-Z15055020 | 55 | 20 | 185
136-Z15055025 | 55 | 25 | 235
136-Z15055030 | 55 | 30 | 280
136-Z15055035 | 55 | 35 | 330
136-Z15055040 | 55 | 40 | 375
136-Z15055050 | 55 | 50 | 470
136-Z15055060 | 55 | 60 | 565
136-Z15060020 | 60 | 20 | 205
136-Z15060025 | 60 | 25 | 255
136-Z15060030 | 60 | 30 | 310
136-Z15060035 | 60 | 35 | 360
136-Z15060040 | 60 | 40 | 410
136-Z15060050 | 60 | 50 | 515
136-Z15060060 | 60 | 60 | 620
136-Z15065020 | 65 | 20 | 220
136-Z15065025 | 65 | 25 | 280
136-Z15065030 | 65 | 30 | 335
136-Z15065035 | 65 | 35 | 390
136-Z15065040 | 65 | 40 | 445
136-Z15065050 | 65 | 50 | 560
136-Z15065060 | 65 | 60 | 670
136-Z15070020 | 70 | 20 | 240
136-Z15070025 | 70 | 25 | 300
136-Z15070030 | 70 | 30 | 360
136-Z15070035 | 70 | 35 | 420
136-Z15070040 | 70 | 40 | 480
136-Z15070050 | 70 | 50 | 600
136-Z15070060 | 70 | 60 | 725
136-Z15075020 | 75 | 20 | 255
136-Z15075025 | 75 | 25 | 320
136-Z15075030 | 75 | 30 | 385
136-Z15075035 | 75 | 35 | 450
136-Z15075040 | 75 | 40 | 515
136-Z15075050 | 75 | 50 | 645
136-Z15075060 | 75 | 60 | 775
136-Z15080020 | 80 | 20 | 275
136-Z15080025 | 80 | 25 | 345
136-Z15080030 | 80 | 30 | 410
136-Z15080035 | 80 | 35 | 480
136-Z15080040 | 80 | 40 | 550
136-Z15080050 | 80 | 50 | 690
136-Z15080060 | 80 | 60 | 825
136-Z15085020 | 85 | 20 | 290
136-Z15085025 | 85 | 25 | 365
136-Z15085030 | 85 | 30 | 440
136-Z15085035 | 85 | 35 | 510
136-Z15085040 | 85 | 40 | 585
136-Z15085050 | 85 | 50 | 730
136-Z15085060 | 85 | 60 | 880
136-Z15090020 | 90 | 20 | 310
136-Z15090025 | 90 | 25 | 385
136-Z15090030 | 90 | 30 | 465
136-Z15090035 | 90 | 35 | 540
136-Z15090040 | 90 | 40 | 620
136-Z15090050 | 90 | 50 | 775
136-Z15090060 | 90 | 60 | 930
136-Z15095020 | 95 | 20 | 325
136-Z15095025 | 95 | 25 | 410
136-Z15095030 | 95 | 30 | 490
136-Z15095035 | 95 | 35 | 570
136-Z15095040 | 95 | 40 | 655
136-Z15095050 | 95 | 50 | 820
136-Z15095060 | 95 | 60 | 980
136-Z15100020 | 100 | 20 | 345
136-Z15100025 | 100 | 25 | 430
136-Z15100030 | 100 | 30 | 515
136-Z15100035 | 100 | 35 | 600
136-Z15100040 | 100 | 40 | 690
136-Z15100050 | 100 | 50 | 860
136-Z15100060 | 100 | 60 | 1030
