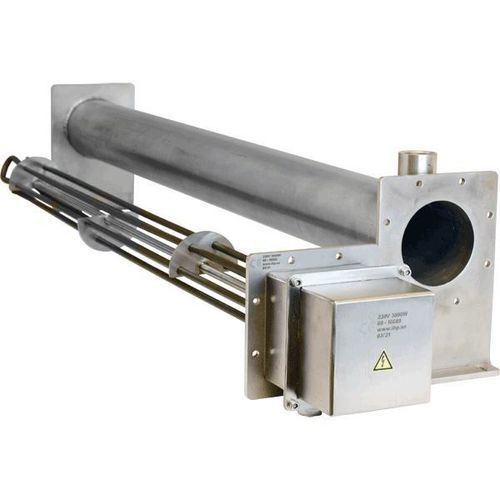

Water heater 60-16689 series

circulationstainless steel

Product description
Through-flow heaters are designed for heating water and water-based liquids in direct or circulation systems. IHP's units are manufactured in acid-resistant stainless steel AISI 316L (1.4404) and are available in four power classes to match surface load to the liquid characteristics. Internal baffles create a sinusoidal turbulent flow, improving heat transfer efficiency.

Temperature control
The supplied digital temperature controller (CE marked) supports even heating, ramp functions, adjustable maximum temperature, programmable steps with ramps and set points, and is calibrated for process control up to 90°C.

Installation
The stainless steel heater can be mounted horizontally on the floor or vertically on the wall. Liquid connects via dedicated inlet and outlet ports. IHP can provide installation support and preventive maintenance. Cable between heater and control unit is approx. 2800mm. RCD is not included (socket assumed protected).

Technical specification
Material: acid-resistant stainless steel AISI 316L (1.4404)
Temperature range: 0–90°C
Power: 2000W, 3000W, 6000W, 9000W
Supply: 230V 1-phase or 400V 3-phase
Dimensions (L x W x H): 1137 x 135 x 215/230mm
Surface load adapted for water-based liquids
Integrated PT100 sensor
Max pressure: 6 Bar
Cable between heater and control unit: approx. 2800mm
Digital programmable regulator (CE marked)
Rubber cable 1.6m with grounded Schucko or Industrial CEE 400V male plug
RCD not included (socket assumed protected)

Standard range
60-16689-2 | 1137 x 135 x 230mm | 2000W | 230V | 1.50 W/cm²
60-16689-3 | 1137 x 135 x 230mm | 3000W | 230V | 2.27 W/cm²
60-16689-6 | 1137 x 135 x 230mm | 6000W | 400V 3-phase | 4.53 W/cm²
60-16689-9 | 1137 x 135 x 230mm | 9000W | 400V 3-phase | 6.79 W/cm²

Options
220-IP65-230V — IP65 protection for humid environments and outdoor use
220-IP65-400V — IP65 protection for humid environments and outdoor use

Technical characteristics

• Material: acid-resistant stainless steel AISI 316L (1.4404)
• Temperature range: 0–90°C
• Power options: 2000W, 3000W, 6000W, 9000W
• Supply: 230V (1-phase) or 400V (3-phase)
• Dimensions (L x W x H): 1137 x 135 x 215/230mm (varies by configuration)
• Surface load tuned for water-based liquids
• Integrated PT100 sensor
• Max pressure: 6 Bar
• Cable between heater and control unit: approx. 2800mm
• Digital programmable regulator (CE marked)
• Rubber cable 1.6m with grounded Schucko or Industrial CEE 400V male plug
• RCD not included (socket assumed protected)
