Suction booth CMA

protectivesandinggrinding

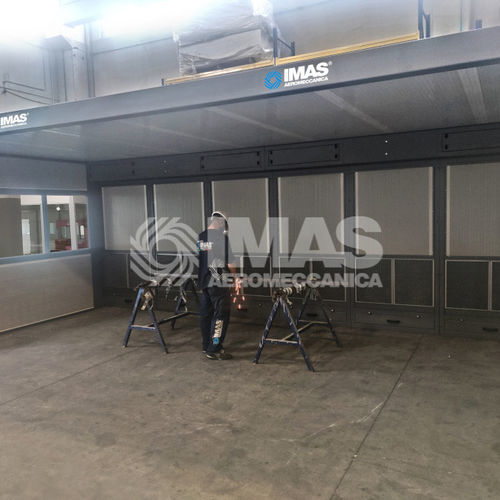

"CMA" Suction booths with cartridge filtration and counter current air jet-pulse for the cleaning. These suction booths contain a completely soundproofed electric fan with spark proof inlet, ATEX motor and electrical panel and are suitable for manual processing of products, even large ones, which generate fine suspended dust. Designed in nominal modularity of 2 and 3 m (2.26 m and 3.39 m effective), they can be expanded as they are extremely modular. Manufactured in-house at IMAS AEROMECCANICA Srl factory they are suitable for sanding, polishing, sandblasting operations, application of paint powders, etc. For grinding and polishing operations, they are available in a specific, sound-absorbing version (CMF), whose front panel has a sandwich structure consisting of a sheet metal base, a high-density fibre foam pad and a perforated sheet metal protective cover; the suction section has a metal pre-filter with anti-spark function and self-extinguishing cartridges. The modules that make up the partition walls or the roof have the same sound-absorbing composition, for overall attenuation of acoustic reverberation. The filtering system is based on antistatic cartridges with filtration efficiency of > 99.99 %, whose cleaning is entrusted to a cyclic timer (STR), with programmable pause/run times and an integrated timer for the post-cleaning function, with an approximate system noise level of 78 Db (A). The treated air can be returned to the environment with consequent energy savings.
