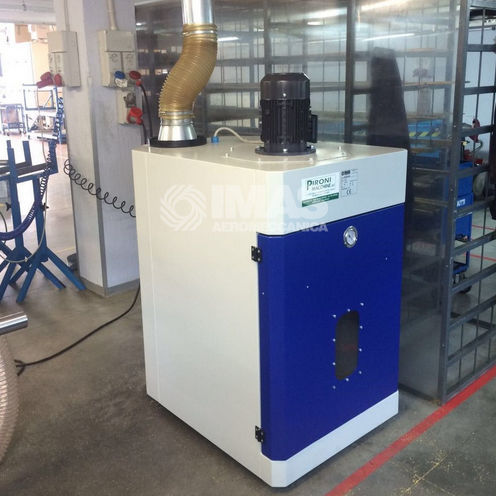

Activated carbon filtration unit CFC

airmobile

Trolley-mounted air cleaner mod. CFC, working in depression, suitable for occasional and discontinuous processin. It has a pre-filtration stage for all typesof dus, by means of class G4 filter cells and a second stage, by means of F9 pocket filters (EN 779: 2002). Odor purification by means of a 60 kg activated carbon cell (extruded activated carbon 4mm - ACTICARBONE ACM 20-4); No.1 Mobile arm with a diameter of 200 mm and maximum working radius of 3 m, with pantograph bearing structure outside the arm and complete with swiveling hood (STANDARD SUPPLY) and valve for regulation; Made in painted steel sheet and installed on wheels; High performance electro-aspirator installed inside the frame with electric motor supplied in S1 class, IP55 protection, kW 3.0 (400V 50 Hz); On board electrical panel, having the function to start/stop the electro-aspirator complete with operating hour counter, voltage indicator, thermal alarm and electrical wiring;
