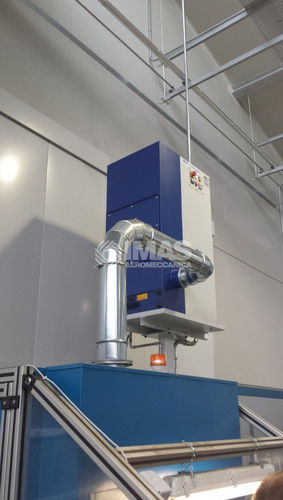

Coalescing filtration unit MCH series

oilfumecompact

The same coalescence principle of working so far applied by IMAS AEROMECCANICA to big installations is now proposed also for little depurators series MCH Functional working - The sucked air enters the depurator through the expansion chamber; the drop in speed causes a fall in kinetic energy , this making the biggest particles fall down into the collecting tank equipped with anti-turbulence interspace. The second stage consists of a metallic pre-filter having optimized section agglomerating the polluting substance and retaining any eventual silicate (solid particles). This pre-filter is easily removable and washable, and its state is indicated by an outer manometer. The third stage of filtration, the heart of the depurator, consists of a self-draining coalescence candle made of a series of pierced metallic cylinders, inside which are placed the compressed glass fibres, disposed by alternating variable sizes between 6 and et 12 microns The filtration, based on the Brownian diffusion principle of sub-micron particles, guarantees an efficiency degree of more than 96-98%, and this with no need of any maintenance or replacement operation. During draining oil is collected in a suitable integrated tank, from which it will be evacuated automatically by means of the Clapet valve. The depurated air goes through the fan – which is then crossed by clean air – and is conveyed towards the final filter (HEPA H14 EN 1822 efficiency 99,99%), which also serves as a diffuser. The high efficiency degree reached by the candle guarantees a long life to the HEPA filter, the state of which is controlled by a differential pressure gauge with alarm warning light.
