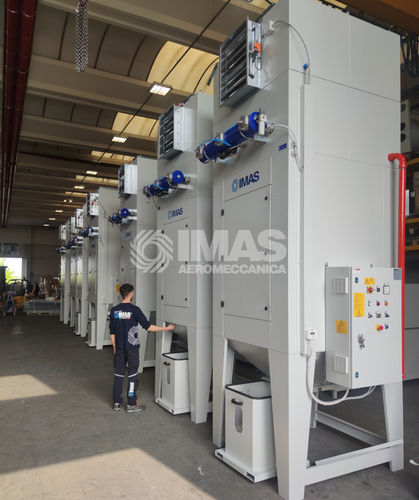

Cartridge dust collector C series

pneumatic backblowingcompactautomatic

Dust collectors with electro-aspirator and electrical panel, suitable for internal use, (available optional kit for external installation). Manufactured under ISO 9001 quality control within the IMAS AEROMECCANICA factories, laser-cut, folded and welded in FE 360 sheet metal, they are supplied fully assembled after a painting cycle with polymerized polyester powder at 180°C. Essentially formed by a vertically monolithic structure, they are complete with an electro-aspirator placed in the upper part, inside a completely soundproofed compartment, controlled through the electrical panel on board of the machine that includes contacts for remote control, hour counter, differential pressure switch and cleaning unit power supply. They can be used on the machine, as a single interlocking unit, to treat powders of different nature, even in continuous operation. The filtering media is sleeves or cartridges with compressed air cleaning system managed by sequencer (STR). The mod. C-MS is equipped with a particular filtration system, consisting of a high efficiency cyclone battery with final non-regenerable H13 filter, suitable for the treatment of fine or coarse powders, with the presence of oily lubricant-coolant emulsions, typical for the cutting of aluminum with automatic cut-off machines.
