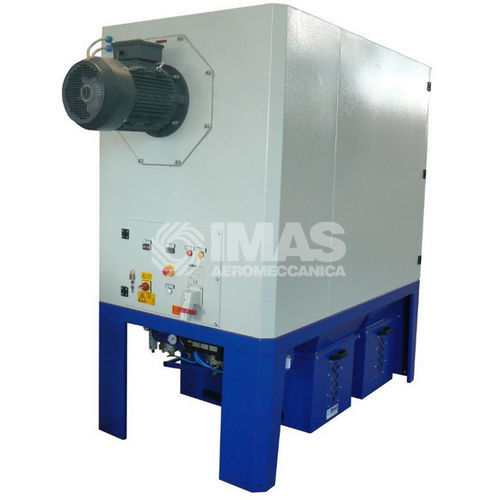

Cartridge dust collector CO series

pulse-jet backflowcompact

“CO” dust collectors with horizontal cartridges, working in depression with cleaning of the compressed air filters in counter-current controlled by a sequencer. Mainly used for indoor applications, they are suitable for the treatment of powders with reduced particle size with concentrations between 3 and 5 [g / m3]. Manufactured under ISO 9001 quality control in IMAS plants, they are supplied fully assembled after being painted with epoxy powders polymerised at 180°C. The electric aspirator, positioned at the rear in a completely soundproofed compartment, is equipped with a high-performance impeller and an electrical panel on the machine. The dusty air enters from below, directly into the hopper equipped with a non-return valve, the heavier material settles directly into a 160-liter container, which is equipped with wheels and quick-coupling hooks. The lighter material is dragged by the air flow towards the filtering media and is subsequently detached by the compressed air jet, due to the size of the valves. The "TF" versions with PTFE membrane cartridges are specifically designed for the suction of Laser or Plasma cutting benches.
