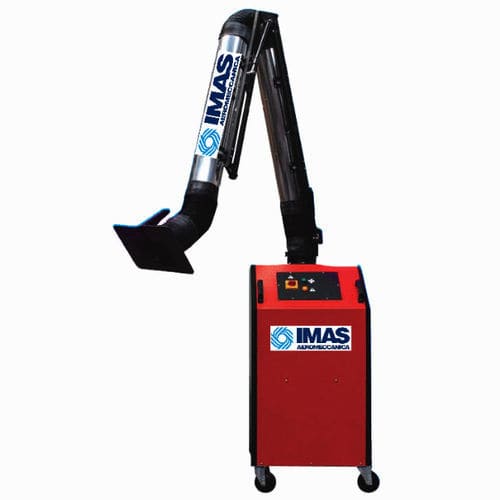

Mobile fume extractor FSU99

weldingcartridgeactivated carbon filter

Wheeled filtering groups complete with aspirator and electrical panel, suitable for occasional or fragmented use for the suction and filtration of welding fumes. They are equipped with a metallic anti-spark prefilter, a cell containing the activated carbon and a high efficiency F9 final filter. Formed by a monolithic structure, they are complete with electro-aspirator, controlled by an on board electrical panel, which includes the hour counter and the differential pressure switch with alarm light; Built under ISO 9001 quality control within the IMAS AEROMECCANICA factory, they are supplied fully assembled after a painting cycle with polymerized epoxy powder and a 3 m mobile arm. Technical features - Filtration efficiency EN 1822 (H12) / 99.5%; - Filtering surface 9 m2; - Sound level 73 dB (A); - Weight 100 kg; - Compact and easy to handle structure, built in sturdy steel sheet, powder coated, complete with wheels, handle, lifting eye bolts; - Metallic prefilter; - Acrylic filter; - High efficiency pocket filter; - IP65 electric control panel equipped with indicator lights to signal line presence, machine operation and any filter clogging; - High efficiency centrifugal electric fan located downstream of the filtering section in a special soundproofed compartment; - 10 Kg activated carbon post-filter - Articulated arm of mt. 2, diameter 160 mm complete with hood equipped with damper and multidirectional joint
